Reinforced Nylon Cloth Duct | Flame Retardant PVC Flexible Air Hose
Reinforced nylon cloth duct with flame-retardant PVC coating. -15°C to 130°C, compresses 1:10 for low shipping cost. For HVAC, fume extraction, and welding smoke. OEM/private label. MOQ 10 pcs.
Reinforced Nylon Cloth Duct | Flame Retardant PVC Flexible Air Hose — Product Overview

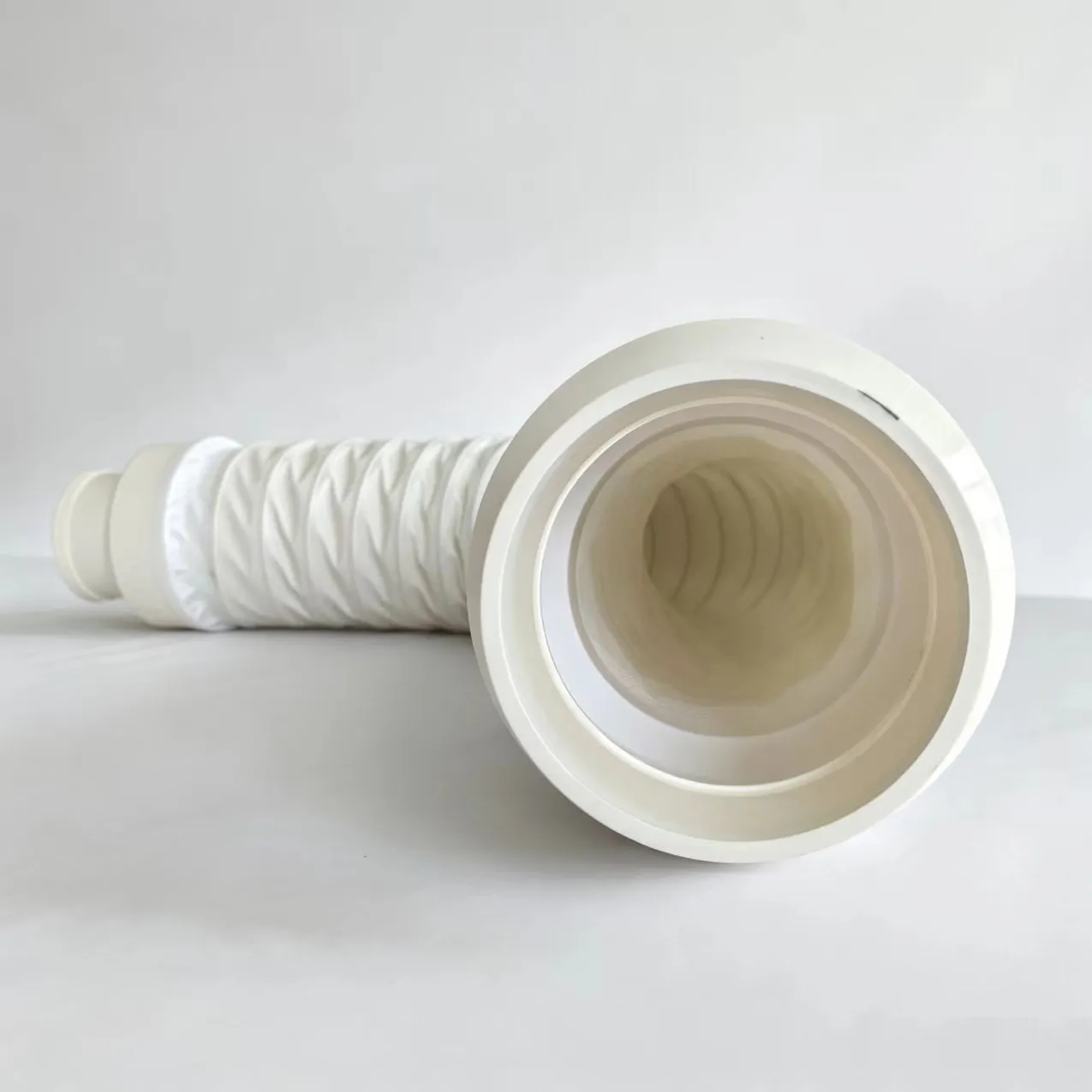

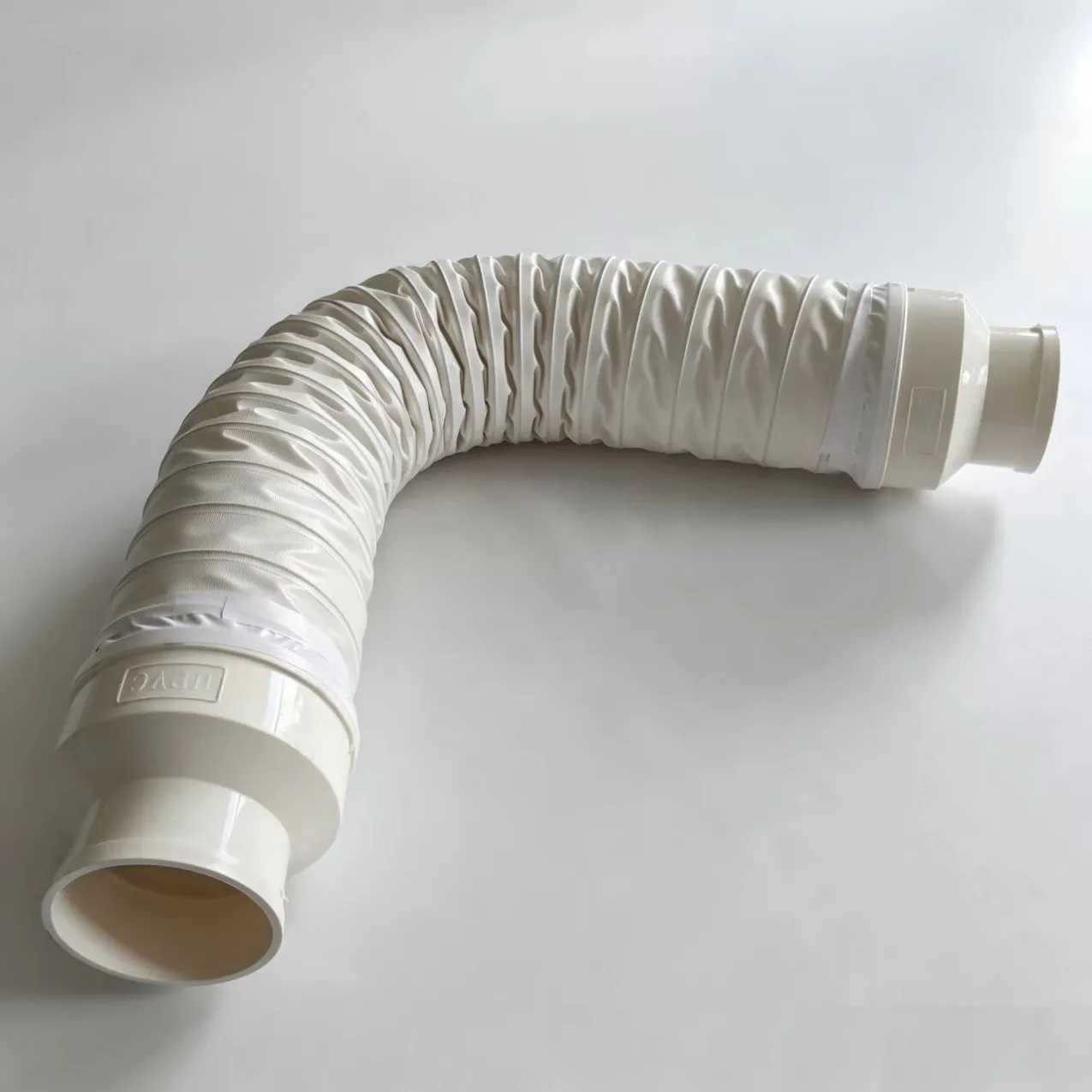

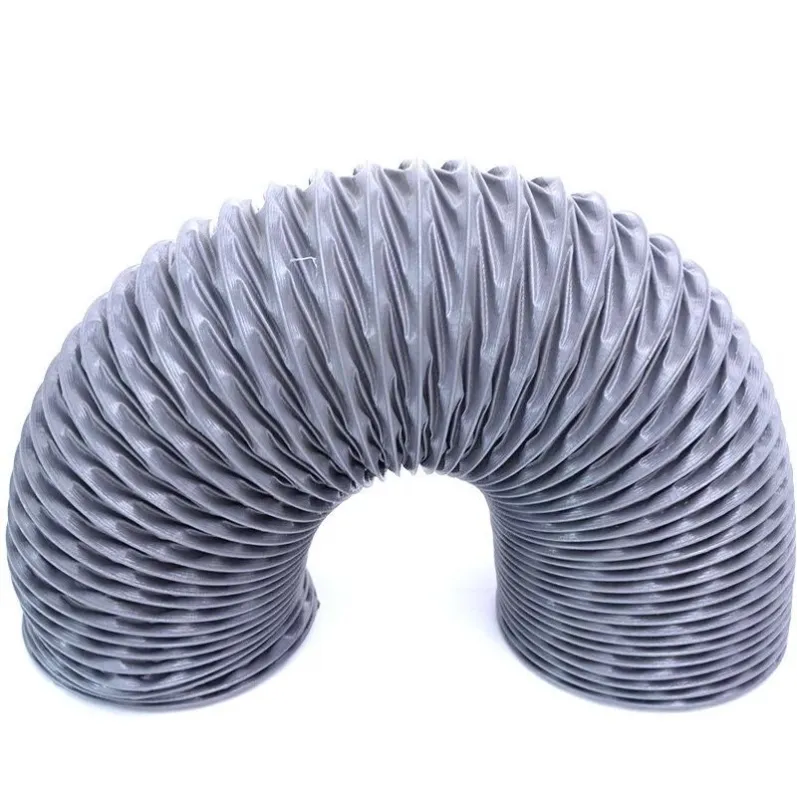

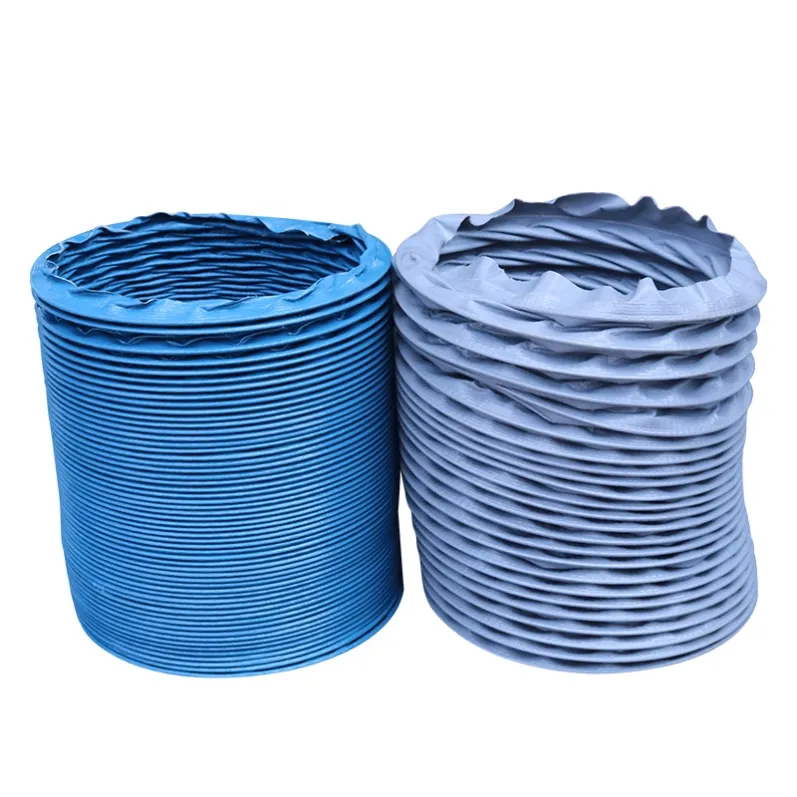

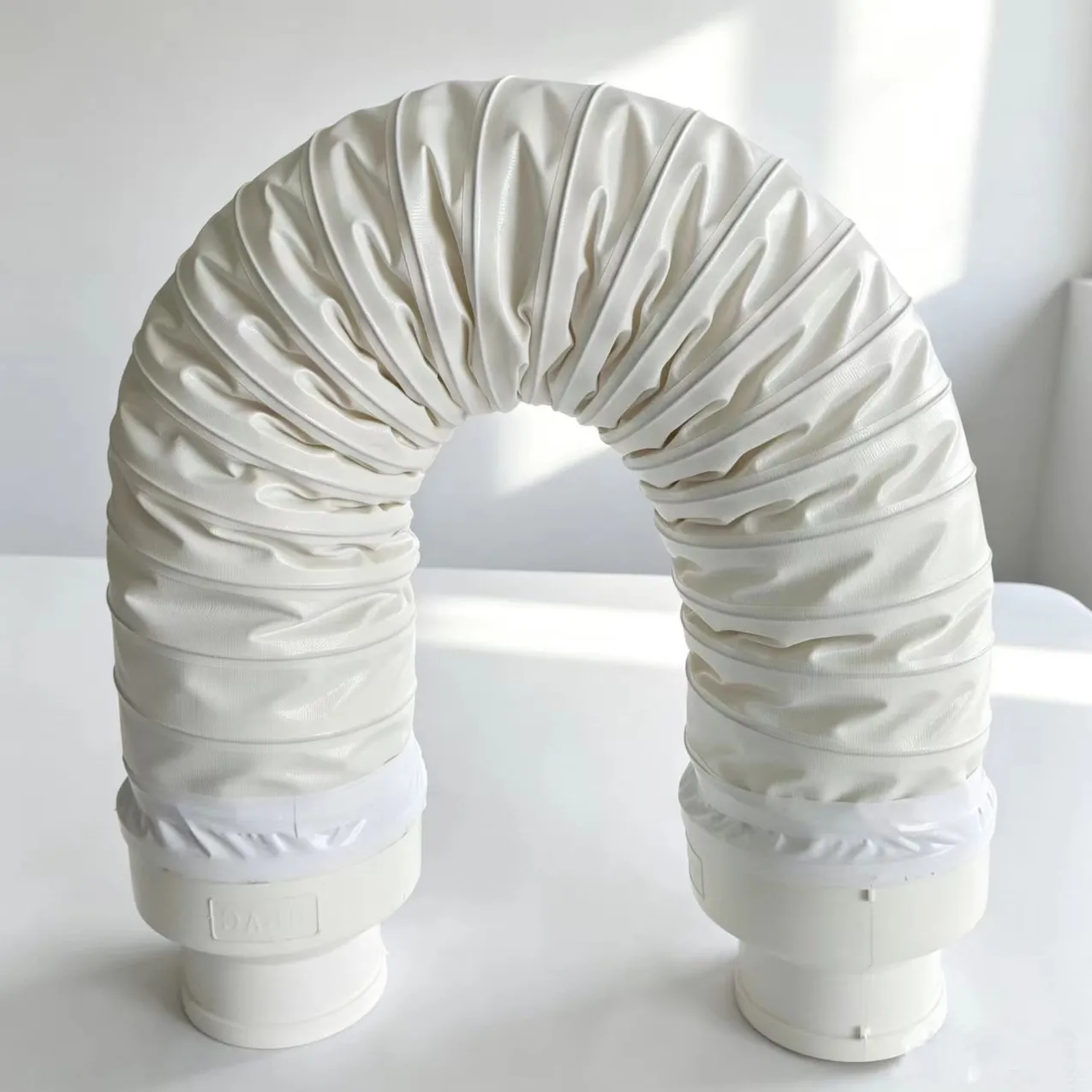

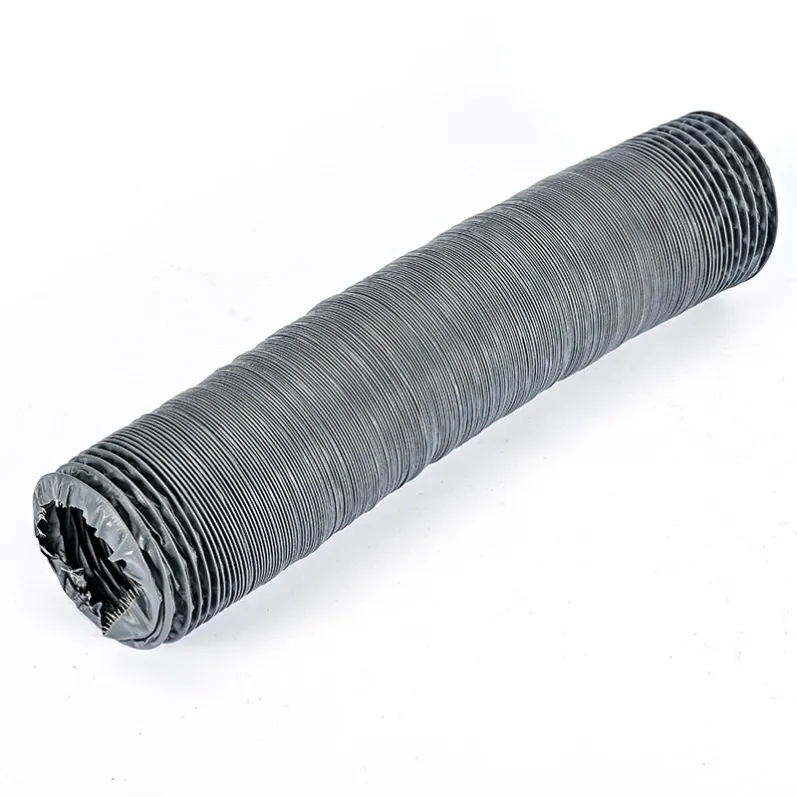

Our reinforced nylon cloth duct is a heavy-duty flame retardant PVC flexible air hose made from tear-resistant nylon fabric with a flame-retardant PVC coating. Rated -15 °C to 130 °C and compressing to roughly 1/10 of its length, it is ideal for HVAC, fume extraction, and welding ventilation where fire safety matters. MOQ: 10 pcs.
Technical Specifications
| Material | Nylon cloth + flame-retardant PVC coated fabric |
| Inner / Outer | Reinforced fabric wall, flexible |
| ID Range | 50 mm – 1500 mm (2" – 60") |
| Temperature Range | -15 °C to +130 °C |
| Flame Rating | Flame retardant (B1 / self-extinguishing) |
| Compression Ratio | ≈ 1 : 10 (compresses to 10% length) |
| Reinforcement | High-tensile nylon yarn, tear-resistant |
| Standard Length | 5 m / 10 m per piece, custom cut |
| Color | Yellow / black (custom colors on request) |
Application Scenarios
- HVAC ventilation: air conditioning, heating, and fresh-air supply lines.
- Fume & smoke extraction: workshop, kitchen, and plant exhaust.
- Welding extraction: capturing welding fumes at the source.
- Dust collection: industrial dust and particulate ventilation.
- Boiler & dryer: high-temp air and heat exhaust lines.
Key Features & Benefits
- Flame retardant: PVC coating self-extinguishes, safer in welding and hot-air use.
- Space-saving: compresses to 1/10 length for low shipping and storage cost.
- Tear & abrasion resistant: nylon cloth stands up to rough site handling.
- Flexible & wide ID: large diameters up to 1500 mm for big airflow.
Customization & OEM Service
We supply OEM and private-label nylon cloth ducts with custom inner diameter, length, temperature rating, and color. Every piece is inspected before export; quotations returned within 24 hours.
Frequently Asked Questions
Q: Is this duct flame retardant?
A: Yes — the PVC-coated nylon fabric is flame retardant (self-extinguishing), suited to welding and HVAC hot-air use.
Q: What temperature can it handle?
A: Rated -15 °C to +130 °C for continuous flexible-air service.
Q: Can you make custom diameters and lengths?
A: Yes — ID up to 1500 mm and length are customizable; share your spec and we return a quote within 24h.
Q: What is the MOQ?
A: 10 pcs for standard sizes; custom specs quoted separately.
Related Products
For vehicle heating and preheater air lines, compare our diesel heater air duct hose, supplied in 6–140 mm with aluminum foil, kraft paper and PVC constructions.
