High Temperature Silicone Hose | Flame Retardant Flexible Ducting Pipe
High-temp silicone fiberglass hose (-70°C to 300°C). Flame-retardant, flexible, and durable. Perfect for industrial dryers, plastics machinery, and HVAC.
Flame Retardant High Temperature Silicone Hose | Flexible Fiberglass Air Duct Tube
High-Performance Silicone Air Ducting for Extreme Temperatures

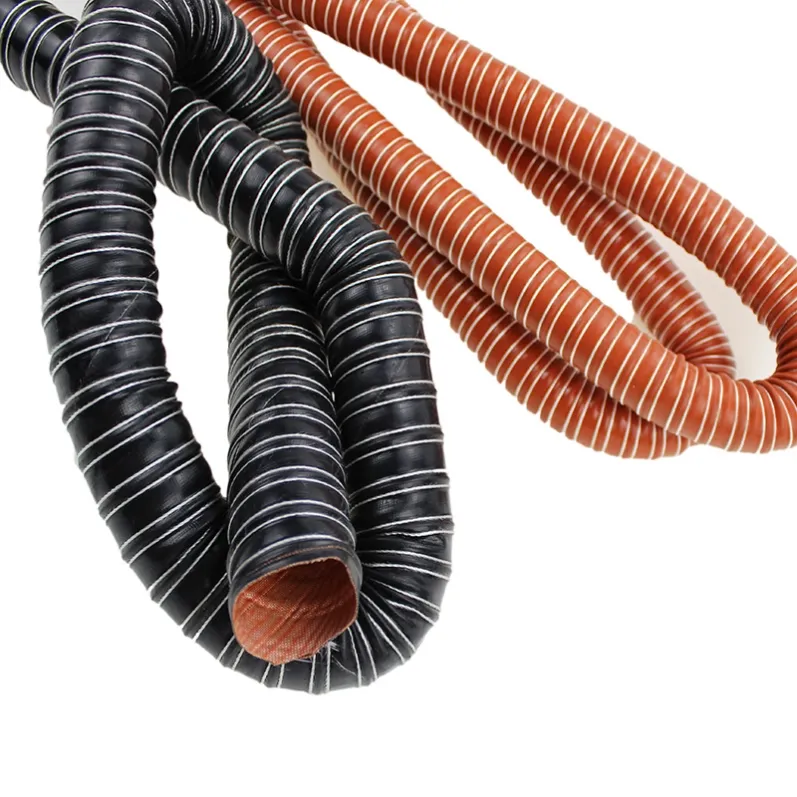

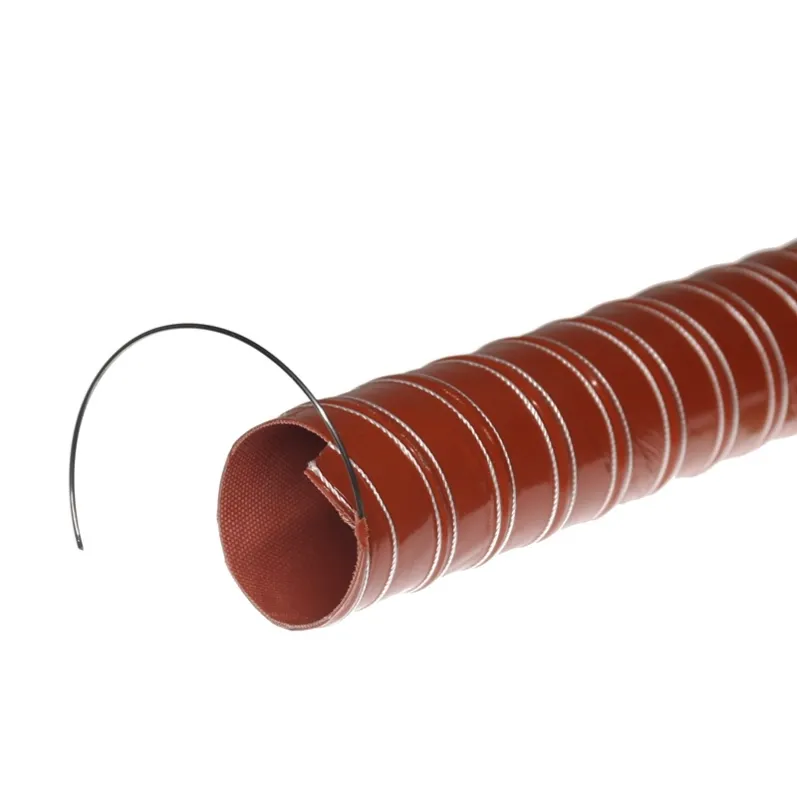

Our red and black flame-retardant high-temperature vulcanized tubes are engineered for demanding industrial ventilation and hot air extraction. Combining premium silicone rubber with premium fiberglass cloth, this hose features an integrated spiral steel wire support for maximum flexibility and structural integrity.
With a smooth inner wall that minimizes wind resistance and a robust wall thickness of 1.0mm (fully customizable), this flexible silicone ducting ensures seamless airflow without material discoloration or contamination.
Key Features & Technical Advantages
Extreme Temperature & Pressure Resistance
- Thermal Range: Operates reliably from -70°C up to +260°C, withstanding instantaneous peaks up to 300°C.
- Pressure Rating: Designed to handle a maximum withstand pressure of up to 5000Pa.
- Wire Gauge: Reinforced with heavy-duty steel wire (diameter 1.0mm to 2.3mm) with uniform pitch winding.
Premium Material Craftsmanship
- Zero Contamination: Features a clean, white inner wall with no impurities, guaranteeing zero staining when materials pass through.
- Industrial Resilience: Exceptional anti-UV properties, strong chemical corrosion resistance, and eco-friendly, non-toxic formulation.
- Flame Retardant: Self-extinguishing vulcanized construction ideal for high-risk heat environments.
Superior Flexibility

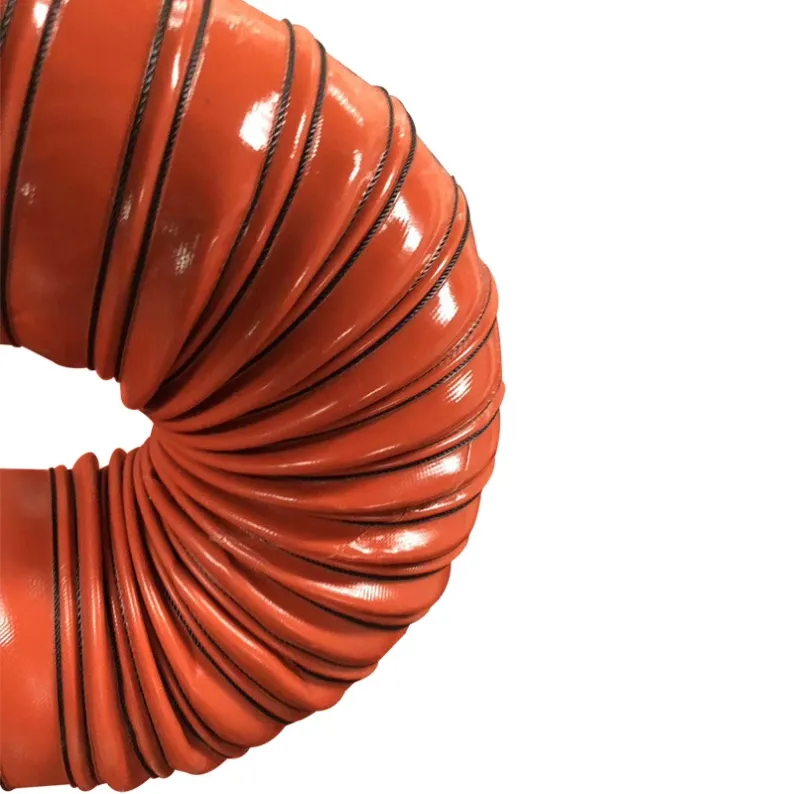

- Smooth bending radius without kinking, maintaining a consistent standard caliber under high vibrations.
Industrial Applications
This versatile high-temperature flexible tube is widely utilized across the following sectors for circulating hot/cold air and expelling exhaust gases:
- Plastics Industry: Plastic extrusion machinery, hopper dryers, and dehumidifiers.
- Industrial Drying & Heating: Commercial ovens, printing machinery, and heavy-duty hot air blowers.
- Automotive & Transit: Engine heating systems, train hot air ventilation circuits.
- Aerospace & Defense: High-spec aviation equipment and military-grade cooling systems.
- Textile Processing: High-temperature industrial ironing tables and garment finishing machines.
Specifications & Ordering Details
Size Chart (Standard 4 Meters Each)
| Standard Specification (Inner Diameter) | Length | Weight per Piece | |
|---|---|---|---|
| Millimeter (mm) | Inch (Inch) | Meters | Unit (kg) |
| 19 | 0.75 | 4 | 0.5 |
| 25 | 1 | 4 | 0.72 |
| 32 | 1.25 | 4 | 0.92 |
| 38 | 1.5 | 4 | 1.1 |
| 40 | - | 4 | 1.1 |
| 43 | 1.75 | 4 | 1.18 |
| 51 | 2 | 4 | 1.34 |
| 60 | - | 4 | 1.52 |
| 63 | 2.5 | 4 | 1.6 |
| 76 | 3 | 4 | 1.94 |
| 80 | 3.15 | 4 | 1.98 |
| 89 | 3.5 | 4 | 2.52 |
| 102 | 4 | 4 | 2.7 |
| 115 | 4.5 | 4 | 3.08 |
| 127 | 5 | 4 | 3.38 |
| 133 | 5.23 | 4 | 3.45 |
| 140 | 5.5 | 4 | 3.5 |
| 152 | 6 | 4 | 4.1 |
| 160 | 6.3 | 4 | 4.18 |
| 180 | 7 | 4 | 4.95 |
| 203 | 8 | 4 | 5.5 |
| 220 | 9 | 4 | 5.94 |
| 250 | 10 | 4 | 6.5 |
| 300 | 12 | 4 | 7 |
| 350 | 14 | 4 | 8.1 |
| 400 | 16 | 4 | 9 |
Note: Wall thickness (standard 1.0mm) and wire diameter can be fully customized according to your specific engineering requirements. Standard sizes range from Ф19mm up to Ф600mm.
Commercial Terms
- Minimum Order Quantity (MOQ): 10 pieces
- Customization: OEM/ODM wall thickness and custom calibers supported.
Frequently Asked Questions (FAQ)
Q1: What is the Minimum Order Quantity (MOQ) for this silicone hose?
A: Our standard MOQ is 10 pieces. For custom wall thicknesses or specialized calibers, please contact our sales team to discuss specific production runs.
Q2: Can the wall thickness be customized for specific pressure requirements?
A: Yes. While our standard wall thickness is 1.0mm, we can customize both the wall thickness and the inner steel wire gauge (1.0mm to 2.3mm) to perfectly match your target operating pressure and environment.
Q3: Does the inner liner discolor or stain materials passing through it?
A: Not at all. The inner wall is crafted from premium, high-purity white silicone rubber. It contains no impurities and is completely colorfast, ensuring that any materials or gases passing through will not be dyed or contaminated.
Q4: Can this tube withstand continuous exposure to 300°C?
A: The hose is rated for continuous operation between -70°C and +260°C. 300°C is its instantaneous/peak temperature capacity. For prolonged exposure above 260°C, please reach out to us for material grade recommendations.
