PVC HOSE

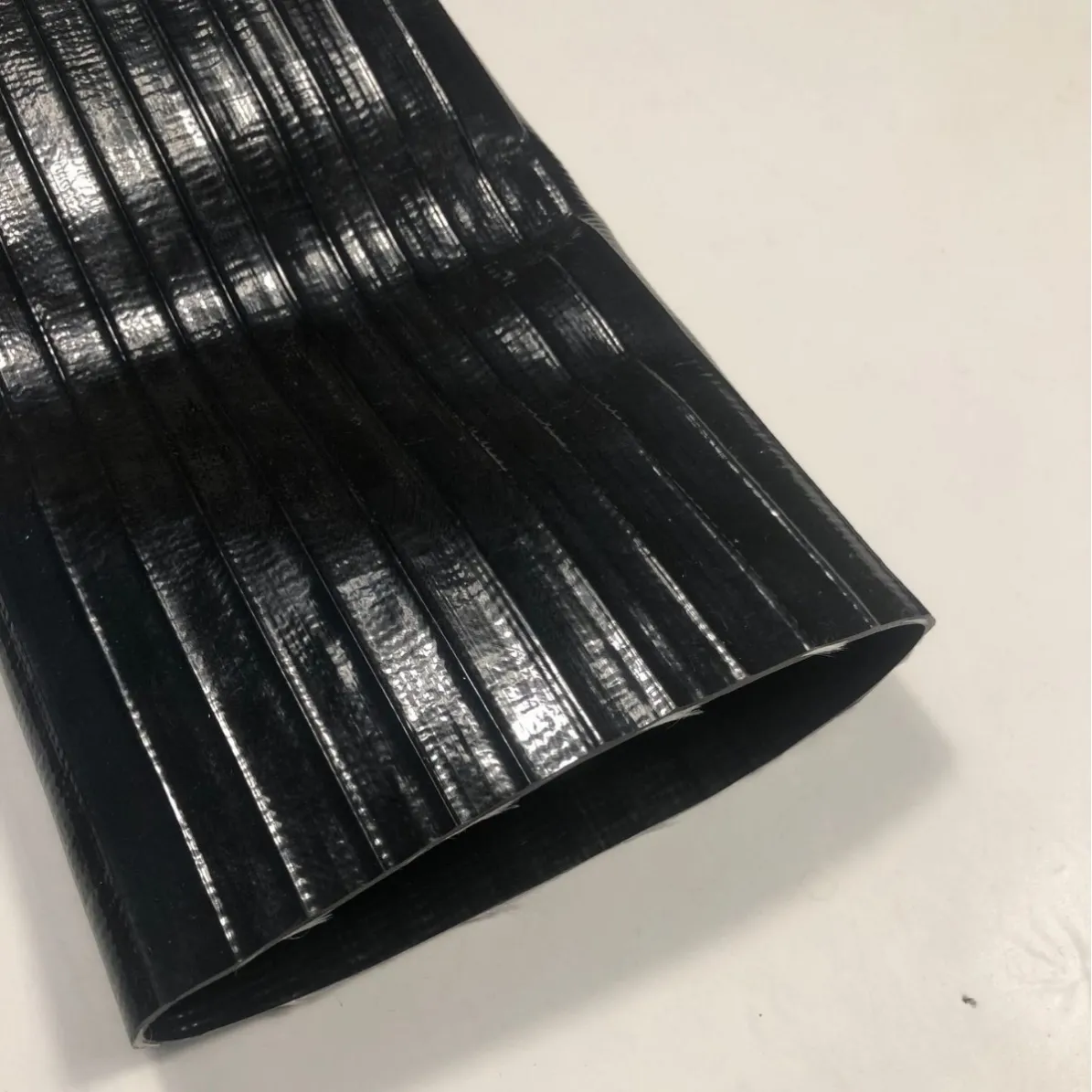

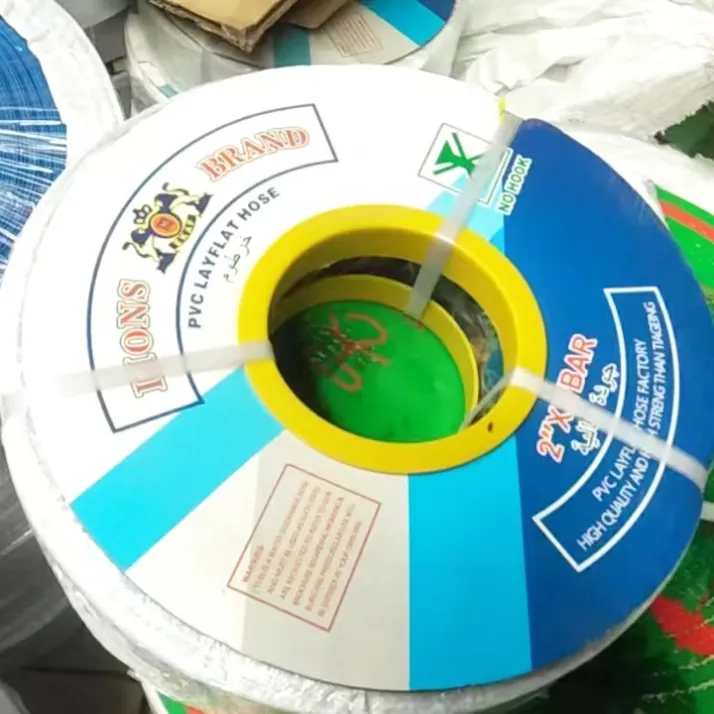

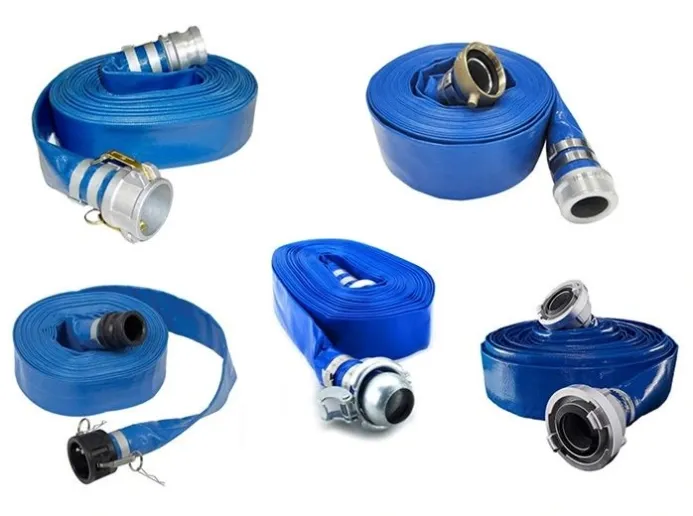

Medium Duty PVC Layflat Discharge Water Hose

Medium Duty PVC Layflat Hose: The Versatile Solution for Various Industrial Applications. The Medium Duty PVC Layflat Hose is an excellent solution for various industrial applications that require pumping and transporting liquids and slurries.

Medium Duty PVC Layflat Discharge Water Hose Overview

Benefits of Using the Medium Duty PVC Layflat Hose

1. High Durability and Flexibility The Medium Duty PVC Layflat Hose is manufactured from high-quality materials that make it highly durable and flexible. This feature makes it ideal for use in harsh industrial settings, where it is subjected to different types of stress. The hose can withstand extreme temperatures, pressure, and exposure to UV rays, making it suitable for use both indoors and outdoors. 2. Easy to Use and Maintain Another benefit of using the Medium Duty PVC Layflat Hose is its ease of use. The hose is lightweight, flexible, and easy to handle, making it easy to move around during installation and maintenance. Additionally, it is easy to clean and requires minimal maintenance. 3. Versatile Applications The Medium Duty PVC Layflat Hose is highly versatile and can be used in various industrial settings. It is ideal for transporting and distributing water, chemicals, and slurries. This product is widely used in industries such as agriculture, construction, mining, wastewater treatment, food processing, and firefighting. 4. Safe and Efficient Safety is a critical consideration when choosing a hose for industrial applications. The Medium Duty PVC Layflat Hose is designed to be safe and efficient, ensuring a consistent flow of liquids without any blockages or leaks. Additionally, it is resistant to kinking and crushing, which could result in loss of productivity or damage to the hose. With its superb performance, this hose guarantees smooth operations, increased efficiency, and reduced downtime.

Key Features & Benefits

Advanced technology high performance with lightness in weight easier to store, to handle and to transport Non kink, durable This hose is resistant to mildew, oils, grease, abrasion, and rolls up flat.

Product Details

Technical Specifications

The Medium Duty PVC Layflat Discharge Water Hose is available in the following specifications:

Inner Diameter (inch)	Size (mm)	Outer Diameter (mm)	Working Pressure (bar)	Size (psi)	Burst Pressure (bar)	Size (psi)	weight (g/m)	coil (m)
3/4	20	22.7	7	105	21	315	110	100
1	25	27.6	7	105	21	315	160	100
1-1/4	32	24.4	7	105	21	315	190	100
1-1/2	38	40.4	7	105	21	315	220	100
2	51	53.7	6	90	18	270	300	100
2-1/2	64	67.1	6	90	18	270	430	100
3	76	79	6	90	18	270	500	100
4	102	105.8	6	90	18	270	800	100
5	127	131	6	90	18	270	1080	100
6	153	157.8	6	90	18	270	1600	100
8	203	208.2	5	75	15	225	2200	100

Structure & Materials

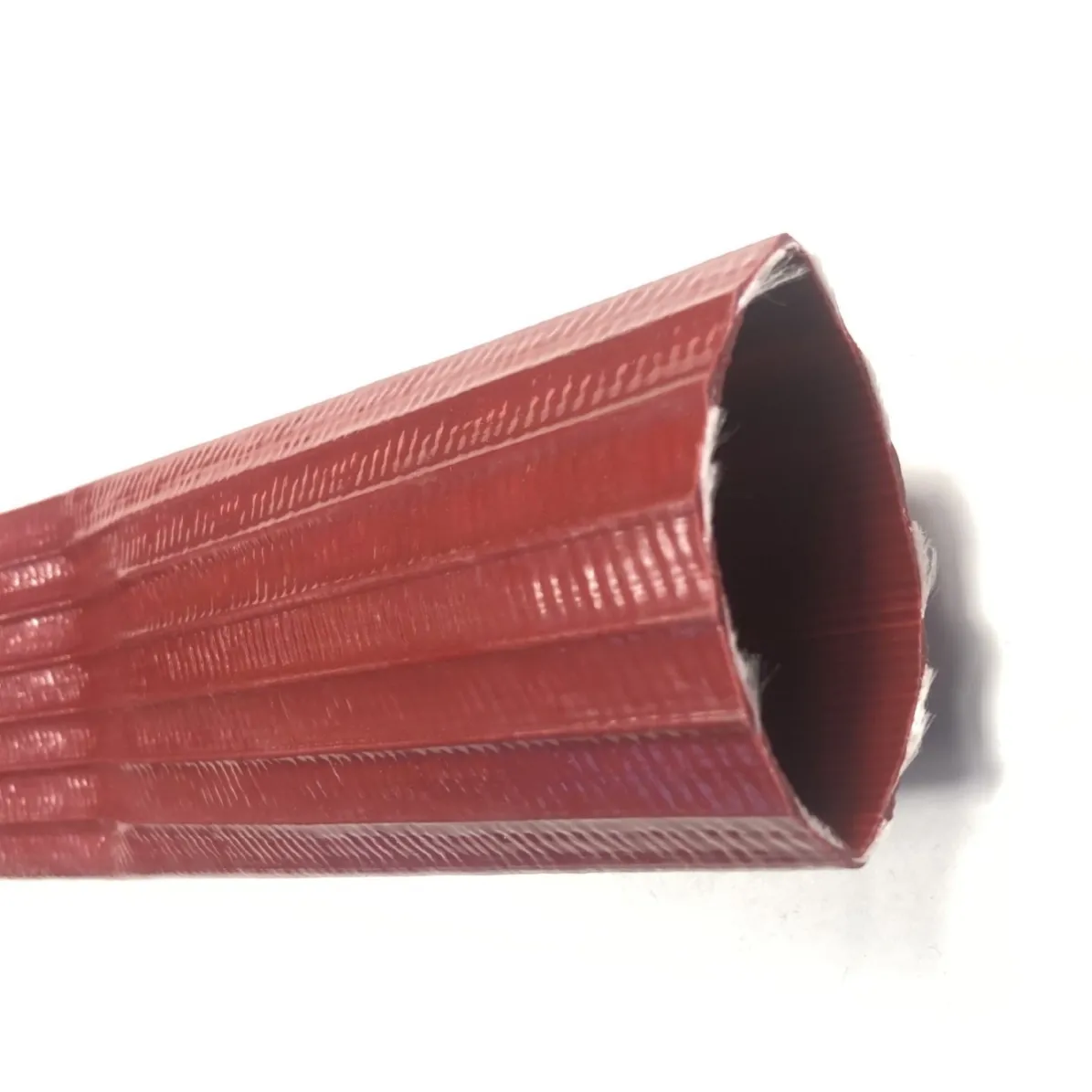

Construction: Flexible and tough PVC are extruded together with 3-ply high tensile polyester yarns, one longitudinal ply and two spiral plies. PVC tube and cover are extruded concurrently to obtain good bonding.

Applications

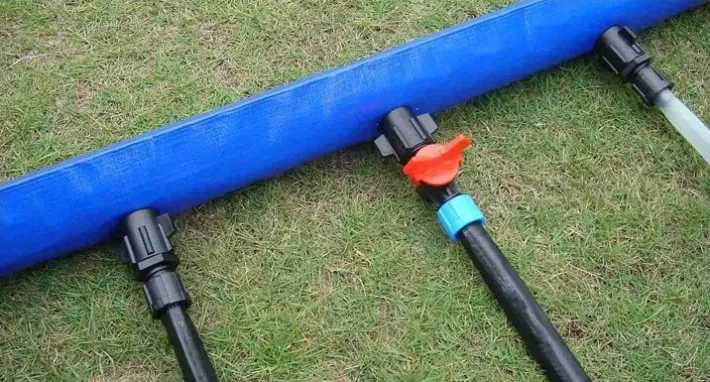

Mainly used for multipurpose delivery, water and light chemical discharge, medium pressure sprinkling, industry waste water drain and water washing in factories and construction, submersible pumping, portable hydrant fire fighting and so on.
