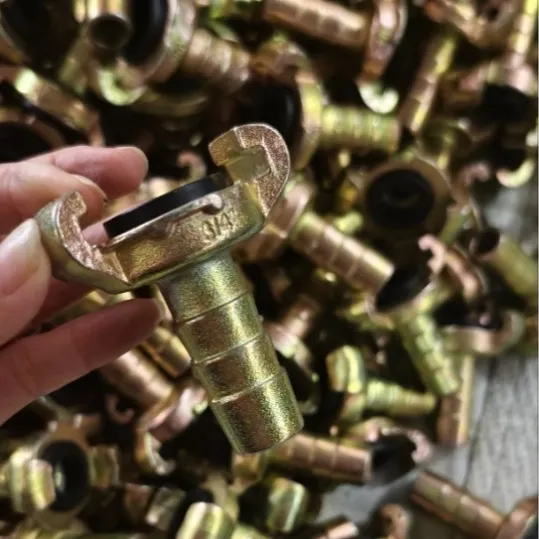

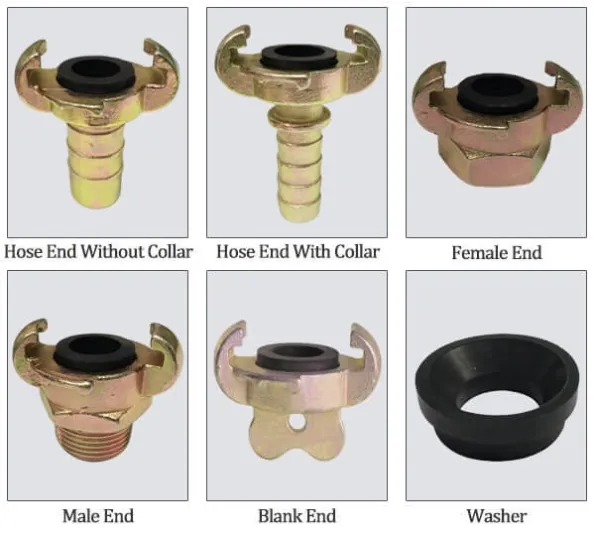

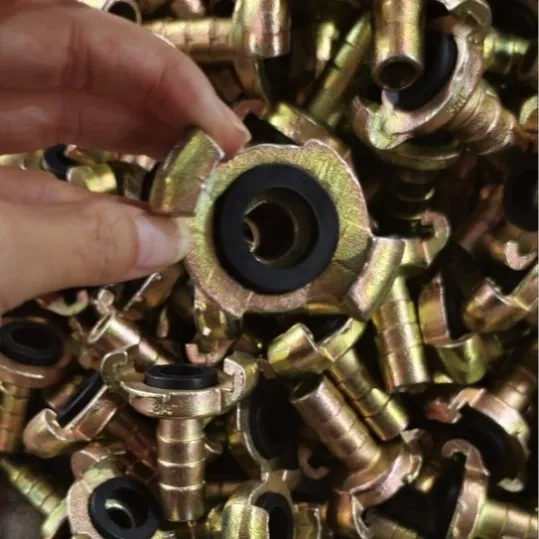

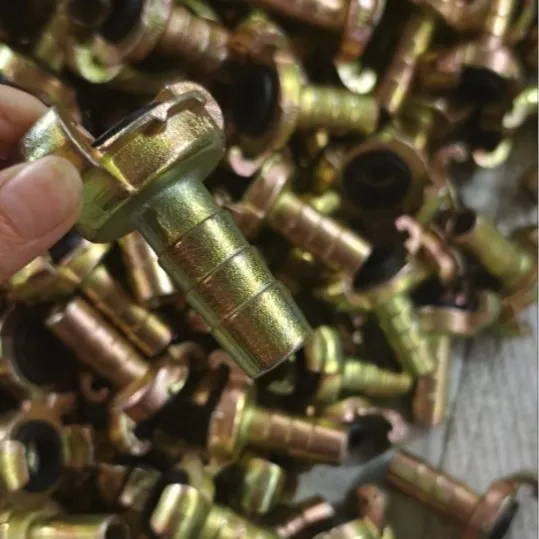

Air Hose Coupling European Type
Air Hose Coupling European Type uses BSP threading and a claw-ferrule design for European-standard compressed air systems. The internal claw ring bites into the hose cover, providing a mechanical grip that complements the threaded connection.
📋 Product Specifications
Material: Steel or Brass
Sizes: 1/4" to 1"
Thread: BSP (BSPP/BSPT)
Working pressure: 10-15 bar
Connection: Claw ferrule + threaded tail
🏭 Common Applications
European compressed air systems
Pneumatic tool connections
Engine and compressor air lines
Industrial workshop airlines
💎 Why Choose This Product
BSP threading — European standard for compressor and pneumatic equipment
Internal claw ring provides mechanical hose grip without requiring a separate ferrule
Quick-install: push hose onto tail, tighten nut
Brass option for non-sparking environments
🛡️ Manufacturing & Quality Standards
Manufactured from brass or zinc-plated steel to DIN standard. Claw rings are hardened to RC 40-45 for reliable hose bite without brittleness. Each coupling is pressure-tested at 1.5x working pressure.
Customization & OEM Service
ShengYa supplies Air Hose Coupling European Type to distributors, hose assemblers and OEM equipment builders worldwide. We support full customization on every order:
- Size & specification: non-standard bore, wall thickness, length or pressure rating built to your drawing or sample.
- Material & construction: compound, cover colour, reinforcement and helix options selected to match the conveyed medium.
- Branding: printed or embossed logo, part number and barcode, plus private-label packaging.
- Assembly: cut lengths, fitted couplings, clamps and pre-assembled hose sets ready to install.
- Documentation: material certificate, dimensional and pressure-test reports supplied on request.
Typical MOQ is 500 m (or 500 pcs for fittings) per size for customized production and lower for stocked items. Standard lead time is 15–25 days, and samples are available for evaluation before bulk order.
Frequently Asked Questions
What is the difference between European type and U.S. type air hose couplings?
They use different profile and locking dimensions and are not interchangeable. European type couplings follow the common CEJN-style profile widely used in Europe, while U.S. type follows the American industrial interchange profile. Tell us which market you serve and we will supply the matching series.
What is your minimum order quantity?
For stocked specifications the MOQ is typically 100 m (or 100 pcs for fittings) per size. For customized production the usual MOQ is 500 m or 500 pcs per size, depending on material and tooling.
Can you produce to my own specification or brand?
Yes. We regularly produce to customer drawings and samples, including non-standard sizes, compounds and cover colours, and we can print or emboss your logo and supply private-label packaging.
What is the lead time, and can I get samples first?
Stocked items normally ship in 7–15 days and customized production in 15–25 days. Samples are available so you can test the product in your application before placing a bulk order.
