PVC HOSE
PVC Steel Wire & Fiber Reinforced Hose
If you are seeking a high-quality and reliable hose for transporting fluids, then PVC Steel Wire & Fiber Reinforced Hose is the perfect solution for you. Known for its unbeatable durability and strength, this hose is ideal for a wide range of applications.
PVC Steel Wire & Fiber Reinforced Hose – Dual Reinforced High Pressure PipeAdvanced Dual-Layer Reinforcement for Extreme Pressure Demands
Standard hoses often force you to choose between vacuum resistance and high-pressure capacity. Our PVC Steel Wire & Fiber Reinforced Hose eliminates that compromise through a cutting-edge hybrid engineering design.By integrating a high-tensile spring steel wire helix with a heavy-duty high-density fiber braided grid, this hose achieves a superior pressure rating that wire-only or fiber-only constructions simply cannot match. It is the ultimate heavy-duty solution for applications that fluctuate between intense positive pressure and full vacuum extraction.
Why This Hybrid Construction Outperforms Standard PVC Hoses
- Anti-Burst Braided Technology: The embedded polyester fiber braid evenly distributes internal fluid pressure, preventing hose swelling and catastrophic bursts under high-pressure spikes.
- Kink & Crush Prevention: A tough spring steel wire skeleton maintains a perfectly round internal diameter, ensuring uninterrupted flow even when bent at sharp angles.
- Simultaneous Pressure & Vacuum Handling: Specially designed for dynamic systems that alternate between suction and high-pressure discharge.
- Crystal Clear Monitoring: Formulated with top-grade, high-transparency PVC resins to allow 100% visual inspection of fluids, blockages, or air bubbles.
- Anti-Static & Grounding Ready: The internal steel wire can be easily grounded to eliminate static electricity buildup during powder or chemical transfer.

Engineering Data & Structural ParametersOur dual-reinforced hoses are manufactured to strict industrial tolerances. Review the core technical capabilities below to match your operational requirements:

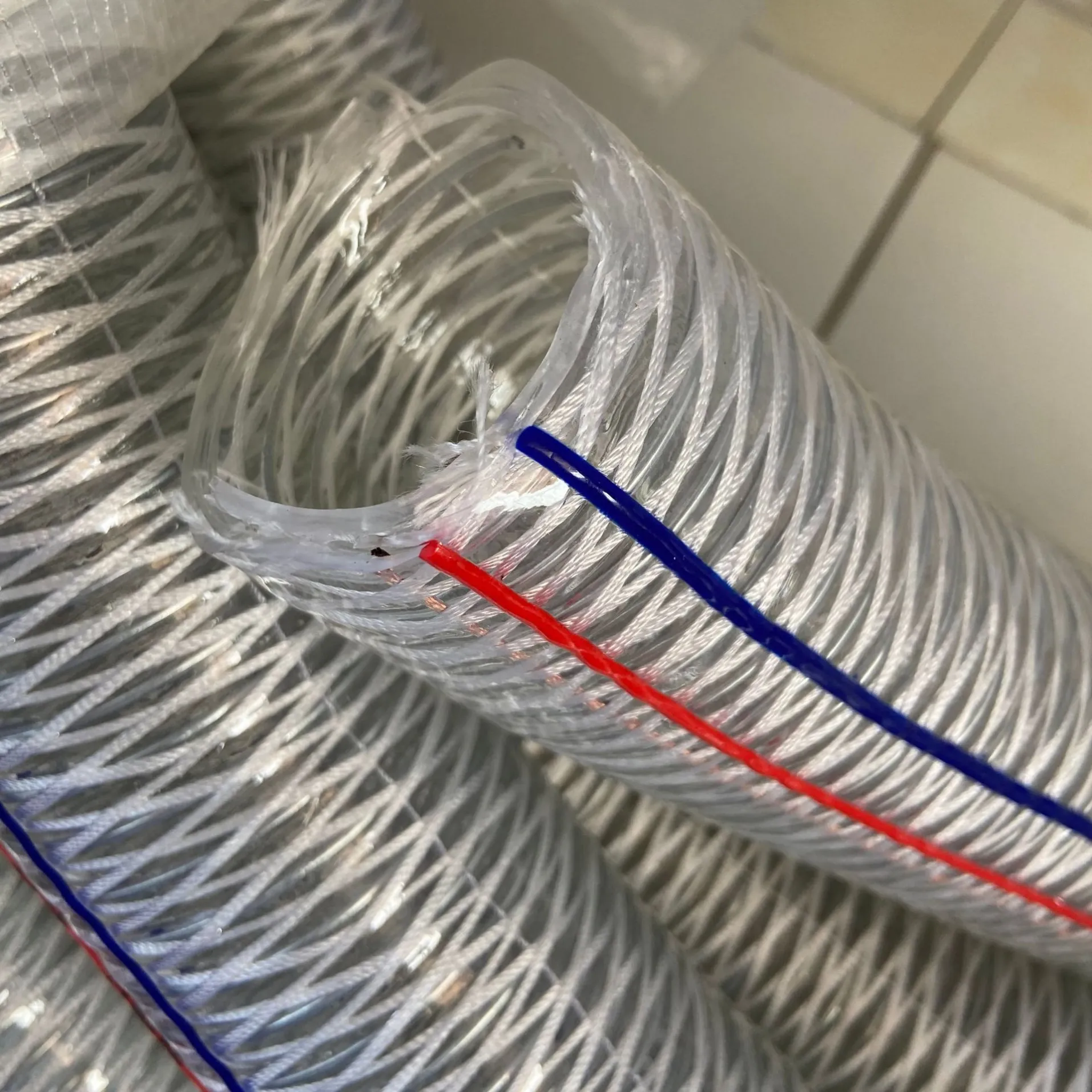

- Core Components: Crystal Clear Flexible PVC + Tensile Steel Wire + Polyester Fiber Braid
- Size Availability: Full range of inner diameters (ID) from 1" (25mm) up to 4" (102mm).
- Pressure Rating Options: Exceeds standard ratings (up to 3x higher than non-braided wire hoses)
- Operational Temperatures: Stable performance from -10°C to +60°C (14°F to 140°F)
- Manufacturing Capacity: Direct factory supply with a minimum order quantity (MOQ) of 500 meters per size. Tailored colors (red, blue, green, yellow, or specific tint lines) are fully customizable upon request to match your branding.

Product Number | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | weight | coil | |||
inch | mm | mm | bar | psi | bar | psi | g/m | m | |
SY-SWHFR-025 | 1 | 25 | 33 | 8 | 120 | 24 | 360 | 600 | 50 |
SY-SWHFR-032 | 1-1/4 | 32 | 41 | 6 | 90 | 18 | 270 | 800 | 50 |
SY-SWHFR-038 | 1-1/2 | 38 | 48 | 6 | 90 | 18 | 270 | 1000 | 50 |
SY-SWHFR-050 | 2 | 50 | 62 | 6 | 90 | 18 | 270 | 1600 | 50 |
SY-SWHFR-064 | 2-1/2 | 64 | 78 | 5 | 75 | 15 | 225 | 2500 | 30 |
SY-SWHFR-076 | 3 | 76 | 90 | 5 | 75 | 15 | 225 | 3000 | 30 |
SY-SWHFR-090 | 3-1/2 | 90 | 106 | 5 | 75 | 15 | 225 | 4000 | 20 |
SY-SWHFR-102 | 4 | 102 | 118 | 5 | 75 | 15 | 225 | 4500 | 20 |

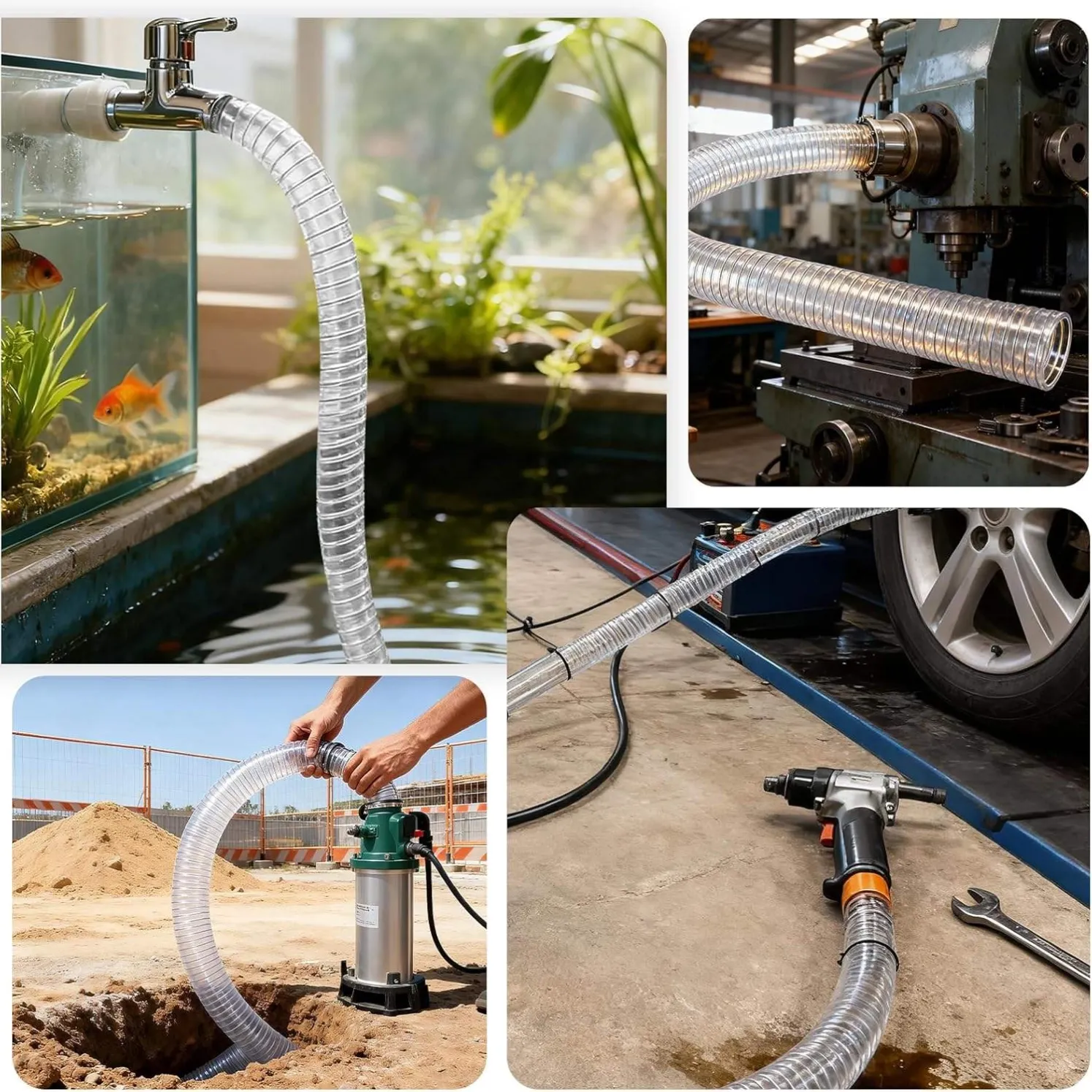

Where to Deploy Dual-Reinforced PVC Hoses
This multi-purpose hybrid hose is widely adopted in heavy industrial lines where fluid failure is not an option:
Industrial Plant Chemical & Oil Delivery
- Safe conveying of mild industrial chemicals, cooling water, and compressed air.
- Fuel, lubricating oil, and mineral oil transfer lines in manufacturing machinery.
High-Pressure Pumping & Slurry Suction
- Heavy-duty trash pumps and construction site de-watering equipment.
- Pneumatic conveying lines for plastics, grains, and abrasive powder materials.


Technical FAQ for Industrial Buyers
How does fiber braiding improve this hose compared to standard steel wire hose?
Standard steel wire PVC hoses handle vacuum well but can burst under high pressure. The added high-density fiber braid wraps the hose tightly, absorbing radial tension. This allows the hose to handle significantly higher working pressures without expanding or rupturing.
Is the steel wire inside rust-resistant?
Yes, we use treated, corrosion-resistant spring steel wire. It is fully encapsulated within the thick inner and outer layers of PVC, isolating it from both external weather and the internal fluid being transferred.
How do I order a specific color or custom branding line?
We offer full color customization for the outer PVC layer or specific color tracers on the hose body. The minimum order quantity (MOQ) for custom runs is 500 meters per size. Contact our sales engineers to discuss your branding needs.
