Anti-Static PU Dust Collection Hose | Flexible Polyurethane Ducting Pipe
Anti-static PU dust collection hose with embedded copper wire for static dissipation. Abrasion-resistant polyurethane (PU) ducting for CNC woodworking dust extraction and pneumatic conveying. OEM/private label available. MOQ 10 pcs.
Anti-Static PU Dust Collection Hose — Product Overview
Our anti-static PU dust collection hose (also called polyurethane dust collection hose or PU flexible ducting) is built for woodworking, CNC, and industrial dust extraction. The clear polyurethane (PU) wall is reinforced with an embedded copper static-wire helix, so static charge is safely dissipated to ground — ideal for combustible dust and pneumatic conveying lines. MOQ: 10 pcs, OEM and private-label branding available.
Technical Specifications
| Material | Polyurethane (PU) wall + embedded copper static-wire helix |
| Inner / Outer | Smooth bore, clear translucent wall |
| ID Range | 25 mm – 300 mm (1" – 12") |
| Wall Thickness | 0.4 mm – 0.6 mm (by ID) |
| Working Pressure | 0.2 – 0.5 bar (by ID) |
| Burst Pressure | ≥ 1.5 bar |
| Temperature Range | -20 °C to +80 °C (short term +90 °C) |
| Bend Radius | ≈ 1.0 × ID |
| Surface Resistance | Anti-static, copper wire grounded |

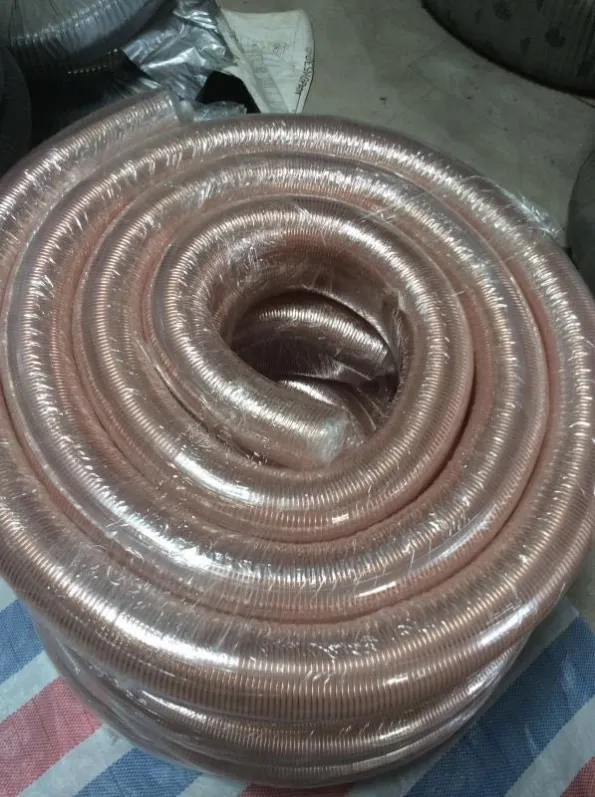

| Standard Length | 10 m / 15 m / 20 m per coil, custom cut available |
| Color | Transparent (custom colors on request) |
Anti-Static & Abrasion Resistant — Why Choose PU
- Anti-static safety: the copper wire helix in this antistatic PU hose dissipates static and reduces spark and dust-explosion risk on dust collection systems.
- Abrasion resistant: a PU abrasion resistant hose outlasts PVC in continuous chip, shaving, and abrasive-powder duty — lower lifetime cost than a PVC dust hose.
- Flexible & space-saving: coils of this flexible PU ducting nest for compact storage and low shipping cost.
- Lightweight: PU flexible hose is easier to route than rigid galvanized duct on CNC and woodworking extraction lines.
Application Scenarios
- CNC dust extraction: connect this CNC dust extraction hose to routers, mills, and laser cutters to capture fine chips and dust at the source.
- Woodworking dust collection: a woodworking dust collection hose for table saws, sanders, and planers; the clear wall lets you spot blockages.
- Vacuum & pneumatic conveying: use as anti-static ducting for vacuum and pneumatic conveying of plastic pellets, powder, and granules.
- Fume & ventilation: light fume extraction and cleanroom ventilation where static build-up is a risk.
- General material transfer: any industrial line moving abrasive or static-prone media.
Customization & OEM Service
We supply OEM PU hose and private-label polyurethane ducting with custom inner diameter, length, wall thickness, and printed logo. Every coil is inspected before export; quotations returned within 24 hours. Ask about our anti-static PU hose bundles for full dust collection system kits.
Frequently Asked Questions
Q: How does the anti-static function work on a PU dust collection hose?
A: A copper wire helix runs through the polyurethane wall and is grounded at the fitting, conducting static charge safely away — essential for combustible dust extraction.
Q: PU or PVC — which dust hose should I choose?
A: Choose a PU abrasion resistant hose for heavy chip, shaving, and abrasive-powder duty and longer life; choose a PVC dust hose for light-duty, cost-sensitive ventilation.
Q: Can you make non-standard sizes and provide OEM?
A: Yes — ID, length, color, and OEM branding are customizable; share your spec and we return a quote within 24h.
Q: Is this suitable for CNC and woodworking dust extraction?
A: Yes, it is widely used as a CNC dust extraction hose and woodworking dust collection hose, including antistatic versions for explosive-dust environments.
Q: What is the MOQ?
A: 10 pcs for standard sizes; custom specs quoted separately.
