Standard Duty PVC Layflat Hose

High-quality standard duty PVC layflat hose for agriculture, dewatering, and wholesale. High-tensile reinforcement, UV-resistant, and low friction loss.

🌟 Quick Overview

  • MOQ (Minimum Order Quantity): 500 Meters
  • OEM / ODM Service: Custom colors (Blue, Red, Orange), private labeling, and custom lengths available.
  • Samples: Free stock samples available upon request for quality verification.
  • Supply Ability: High-capacity circular loom production ensures fast lead times for bulk container orders.


📝 Product Description

The ShengYa Standard Duty PVC Layflat Hose is the industry-standard, lightweight, and cost-effective solution for agricultural irrigation and commercial water transfer. It is designed for easy deployment and excellent resistance to flattening and kinking.


📋 Technical Specifications

  •

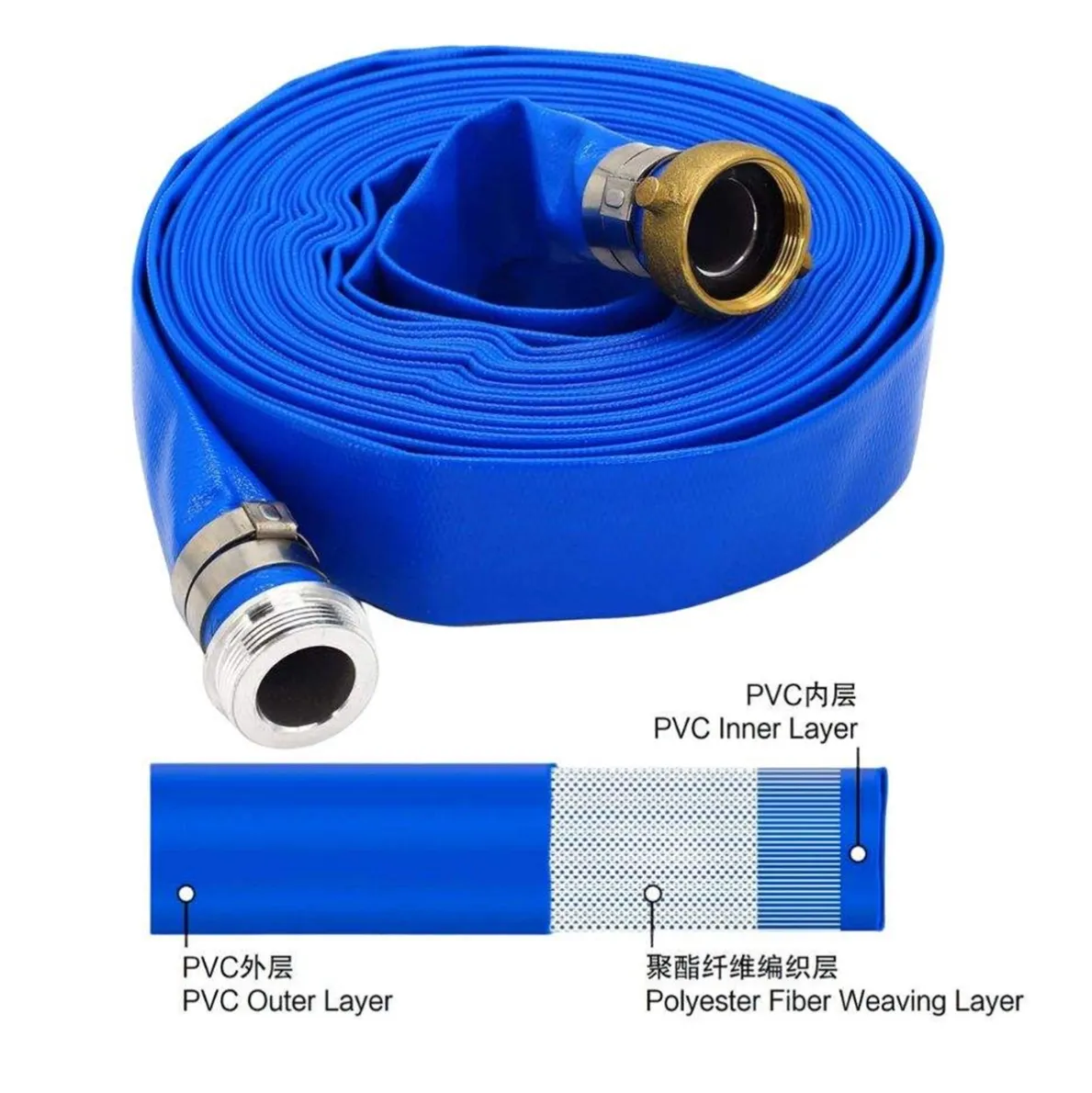

  • Material: Premium PVC with high-tensile polyester yarn reinforcement

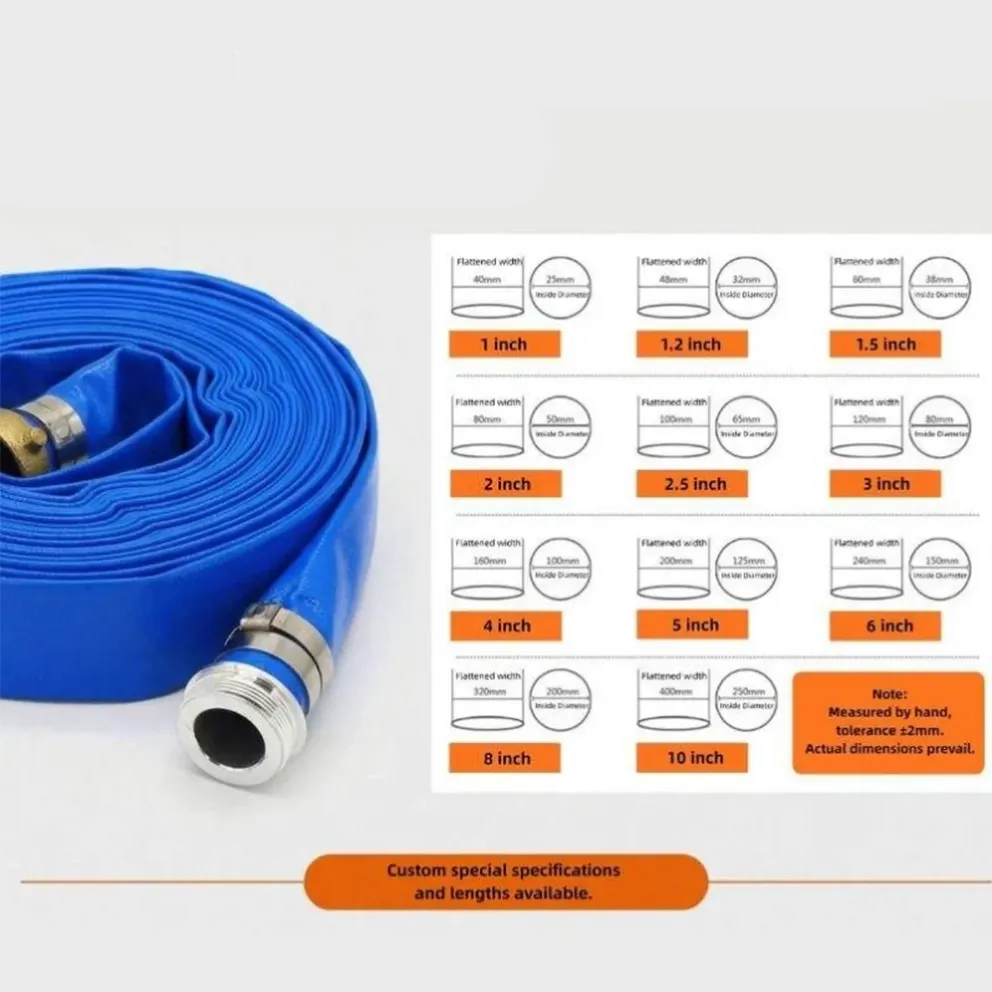

  • Sizes: 1" up to 12"
  • Working Pressure: 3 to 8 bar (43 to 116 PSI)
  • Temperature Range: -10°C to 60°C (14°F to 140°F)
  • Length: 50m / 100m per roll

Light Duty PVC Layflat Hose
Part No.
Inch Size
I.D
O.D
Thickness
W.P
B.P.
Length
Weight
Volume
(mm)
(mm)
(mm)
(bar)
(bar)
(m/roll)
(kg/m)
(m3/roll)
LDLF-26
1"
26
28.6
1.30
4
12
100
0.15
0.022
LDLF-33
1-1/4"
33
35.4
1.20
4
12
100
0.17
0.025
LDLF-41
1-1/2"
41
43.4
1.20
5
15
100
0.19
0.028
LDLF-53
2"
53
55
1.00
4
12
100
0.22
0.032
LDLF-66
2-1/2”
66
68.2
1.10
4
12
100
0.30
0.049
LDLF-78
3"
78
80.2
1.10
4
12
100
0.36
0.057
LDLF-104
4"
104
106.5
1.25
4
12
100
0.55
0.09
LDLF-128
5"
128
130.7
1.35
3.5
10
100
0.75
0.102
LDLF-155
6"
155
157.7
1.35
3
9
100
0.90
0.12
LDLF-207
8"
207
211
2.00
3
9
100
1.60
0.212
LDLF-207H
8"
207
212.3
2.65
3
9
100
2.02
0.234
LDLF-257
10"
257
261.8
2.40
2.5
7
50
2.60
0.18
LDLF-308
12"
308
312.7
2.35
2
6
50
3.00
0.21
Standard Duty PVC Layflat Hose
Part No.
Inch Size
I.D
O.D
Thickness
W.P
B.P.
Length
Weight
Volume
(mm)
(mm)
(mm)
(bar)
(bar)
(m/roll)
(kg/m)
(m3/roll)
MDLF-20
3/4"
20
22.7
1.35
6
21
100
0.11
0.016
MDLF-26
1"
26
28.6
1.3
6
21
100
0.16
0.023
MDLF-33
1-1/4"
33
35.4
1.2
6
21
100
0.19
0.028
MDLF-41
1-1/2"
41
43.4
1.2
6
21
100
0.22
0.031
MDLF-45
1-3/4"
45
47.8
1.4
6
21
50
0.32
0.021
MDLF-53
2"
53
55.7
1.35
6
18
100
0.3
0.039
MDLF-53H
2"
53
56
1.5
8
24
50
0.35
0.026
MDLF-66
2-1/2"
66
69.1
1.55
6
18
100
0.43
0.057
MDLF-78
3"
78
81
1.5
6
18
100
0.5
0.069
MDLF-104
4"
104
107.8
1.9
6
18
100
0.8
0.107
MDLF-128
5"
128
132
2
6
18
100
1.08
0.134
MDLF-155
6"
155
159.8
2.4
6
18
100
1.6
0.183
MDLF-207
8"
207
212.2
2.6
5
15
50
2.2
0.135


💎 Key Features & B2B Advantages

  •
  • Cost-Effective: Economical fluid transfer for agricultural and construction uses.
  • Durable Bond: Advanced extrusion ensures inner/outer layer adhesion.
  • UV & Weather Resistant: Withstands harsh outdoor conditions.
  • Universal Compatibility: Fits standard Camlock and KC connectors.
  •

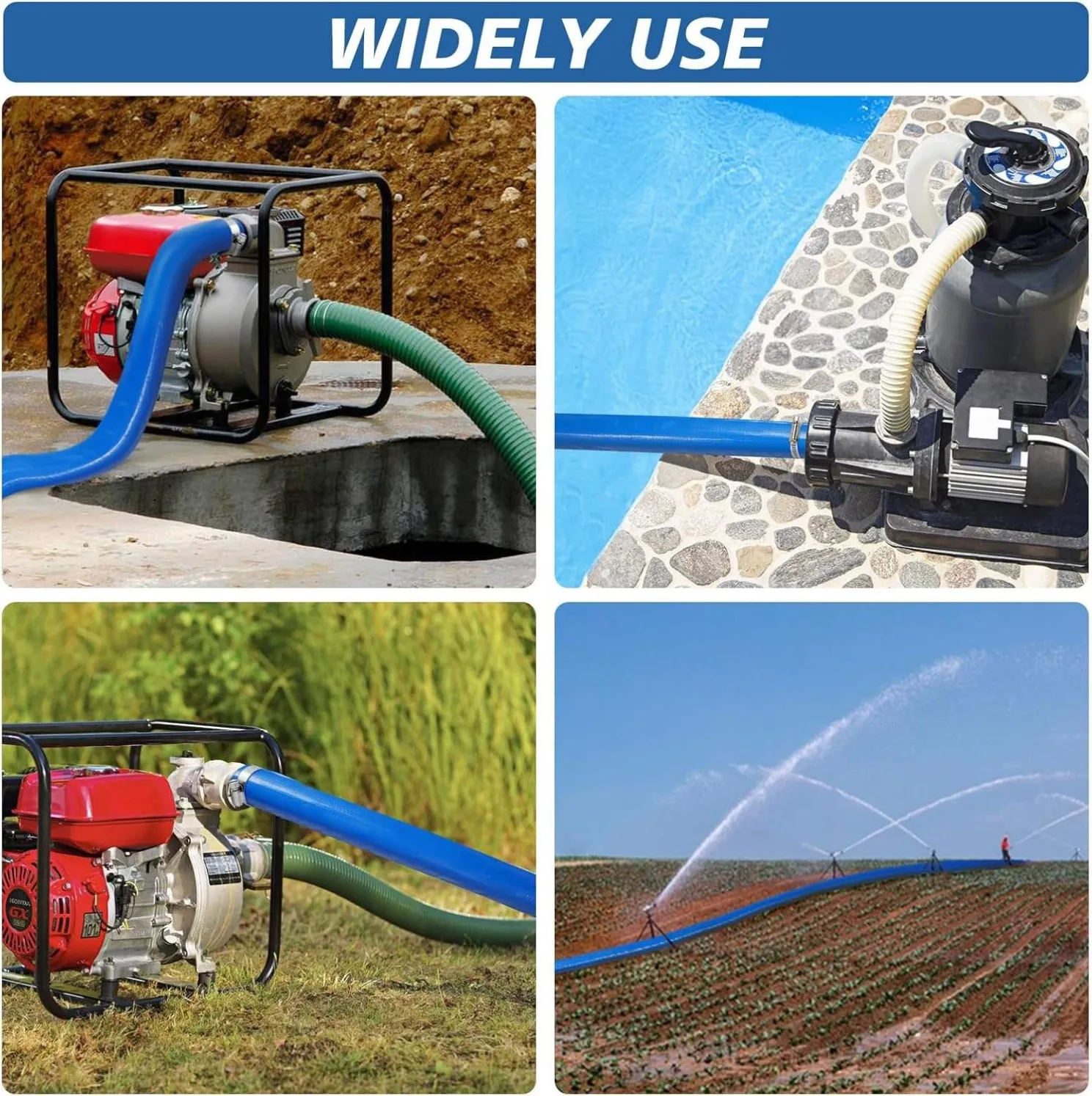

🏭 Common Commercial Applications

  • Agricultural: Irrigation and farm drainage.
  • Construction: Dewatering and water transfer.
  • Industrial: General liquid discharge.
  •


🛡️ Manufacturing & Quality Assurance

ShengYa ensures quality through rigorous material inspection and hydrostatic testing (up to 3x working limits) before shipping in secure packaging.
