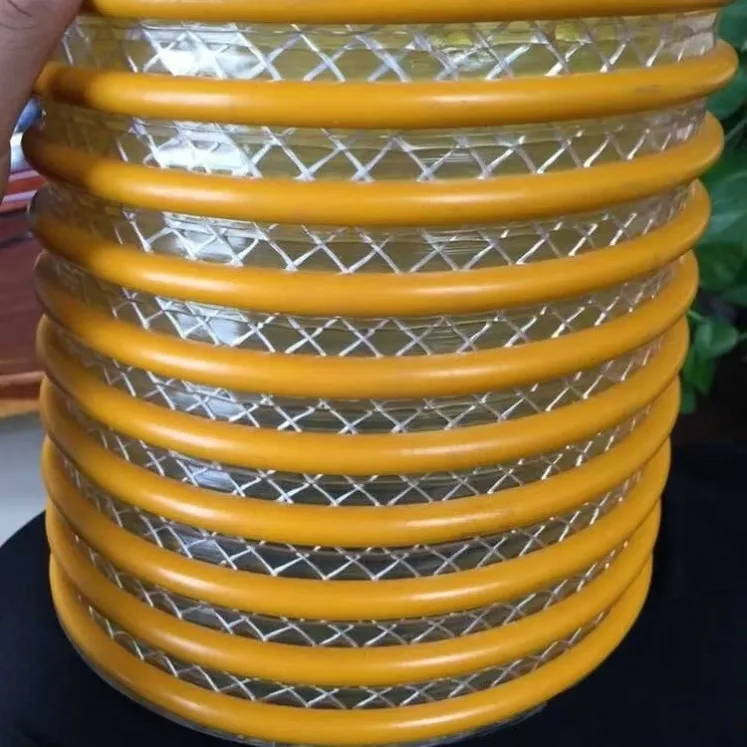

PVC Fiber Reinforced Suction Hose
PVC Fiber Reinforced Suction Hose – Durable and Versatile PVC fiber reinforced suction hose is an innovative product designed to meet the demanding needs of a wide range of industries.
PVC Fiber Reinforced Suction Hose — Product Overview
Our PVC fiber reinforced suction hose (also called PVC braided suction hose or fiber reinforced PVC hose) is a lightweight, flexible discharge and suction hose built for water, mild chemicals, grains, and powders. A embedded polyester fiber reinforcement gives it higher working pressure and kink resistance than unreinforced PVC tubing, while the smooth bore keeps flow loss low. MOQ: 10 pcs, OEM and private-label branding available.
Technical Specifications
| Material | PVC wall + embedded polyester fiber (yarn) reinforcement |
| Inner / Outer | Smooth bore inside, glossy PVC outside (clear or colored) |
| ID Range | 8 mm – 102 mm (5/16" – 4") |
| Wall Thickness | 1.5 mm – 4.0 mm (by ID) |
| Working Pressure | 3 – 8 bar (by ID, at 20 °C) |
| Burst Pressure | ≥ 3 × working pressure |
| Vacuum Resistance | Full vacuum rated (fiber reinforcement prevents collapse) |
| Temperature Range | -5 °C to +65 °C |
| Standard Length | 10 m / 20 m / 30 m / 50 m per coil, custom cut available |
| Color | Transparent, blue, green, or custom (food-grade clear available) |
Why Choose a Fiber Reinforced PVC Suction Hose
- Lightweight & flexible: a flexible PVC suction hose is easy to route and store versus rubber hose, cutting handling cost.
- Kink & collapse resistant: the fiber reinforced PVC hose keeps its round shape under suction and full vacuum.
- Abrasion & weather resistant: UV-stabilized PVC stands up to outdoor and agricultural duty.
- Smooth bore: low friction for water, grain, and powder transfer with minimal pressure loss.
- Food-grade option: clear, non-toxic PVC available for food, beverage, and drinking-water lines.
Application Scenarios
- Water suction & discharge: use as a water suction hose for pumps, wells, pools, and construction dewatering.
- Agricultural irrigation: a PVC agricultural hose for irrigation lines, greenhouses, and field drainage.
- Aquaculture & fish farming: circulation and aeration water lines in ponds and tanks.
- Grain & powder transfer: move wheat, feed, flour, and plastic pellets with a PVC grain suction hose.
- Light chemical & general duty: mild chemical, coolant, and workshop fluid transfer where full rubber rating is not needed.
Customization & OEM Service
We supply OEM PVC hose and private-label fiber reinforced suction hose with custom inner diameter, wall thickness, length, and printed logo. Food-grade and anti-static (dissipative) versions are available on request. Every coil is pressure-tested before export; quotations returned within 24 hours.
Frequently Asked Questions
Q: Is this PVC fiber reinforced suction hose food grade?
A: A clear, non-toxic food grade PVC hose version is available for drinking water, beverage, and food transfer — request the food-grade option when quoting.
Q: What pressure can it handle?
A: Working pressure is 3–8 bar by ID at 20 °C, with burst rated at roughly three times working pressure. It is also full-vacuum rated thanks to the fiber reinforcement.
Q: Can you make custom sizes and provide OEM?
A: Yes — ID, length, color, and OEM branding are customizable; share your spec and we return a quote within 24h.
Q: PVC or rubber — which should I choose?
A: Choose a fiber reinforced PVC hose for lighter weight, lower cost, and good flexibility in water/grain/light-chemical duty; choose rubber hose for higher temperature or oil/fuel service.
Q: What is the MOQ?
A: 10 pcs for standard sizes; custom specs quoted separately.
