Heavy Duty Flexible PVC Clear Braided Hose
Heavy duty clear braided PVC hose with polyester yarn reinforcement. Abrasion and UV resistant for water, air, and pneumatic lines. Food-grade option available. OEM/private label. MOQ 10 pcs.
Heavy Duty Clear Braided PVC Hose — Product Overview

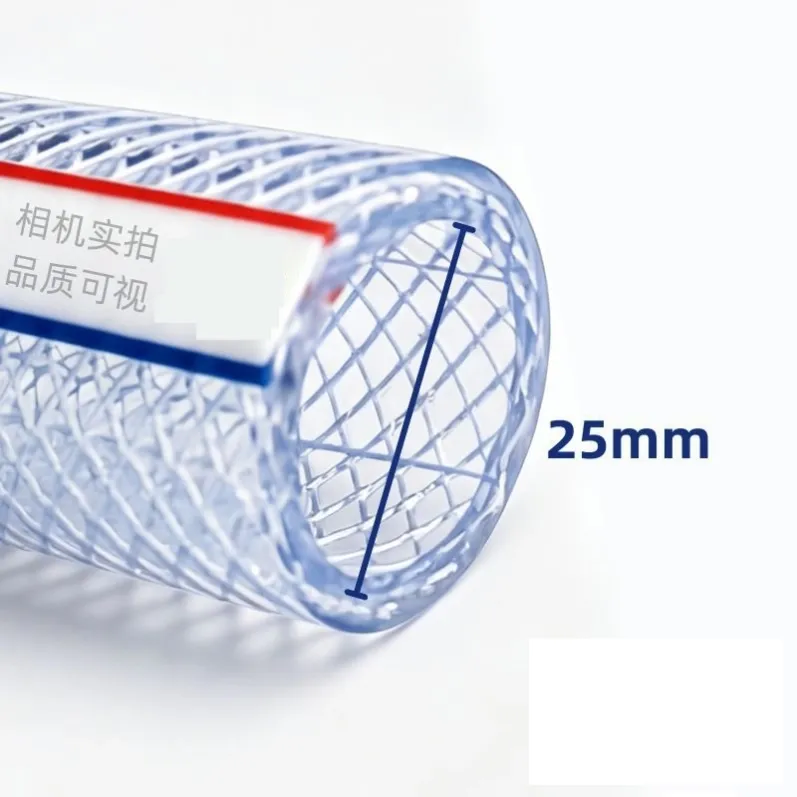

Our heavy duty clear braided PVC hose (PVC braided hose / reinforced PVC hose) pairs a flexible PVC tube with a polyester yarn braid and a clear PVC cover. It is abrasion-resistant, puncture-resistant, and UV-stable, making it a tough, see-through water and air line for industrial and commercial use. MOQ: 10 pcs.
Technical Specifications
| Material | PVC tube + polyester yarn braid + clear PVC cover |
| Inner / Outer | Smooth bore, transparent clear wall |
| ID Range | 6 mm – 50 mm (1/4" – 2") |
| Wall Thickness | 2.0 mm – 4.0 mm (by ID) |
| Working Pressure | 8 – 20 bar (by ID) |
| Burst Pressure | ≥ 3 × working pressure |
| Temperature Range | -10 °C to +65 °C |
| Bend Radius | ≈ 3 × ID |
| Reinforcement | High-tenacity polyester braid |
| Standard Length | 50 m / 100 m per coil, custom cut available |
| Color | Transparent (blue / red / green stripes on request) |
Application Scenarios
- Water supply: garden, irrigation, and general water transfer lines.
- Pneumatic & air tools: compressed-air lines for air tools and compressors.
- Food & beverage (non-toxic grade): liquid food and beverage transfer where clear bore helps.
- Industrial fluids: mild chemical, coolant, and workshop fluid lines.
- Aquarium & hydroponics: clear water lines where visibility matters.
Key Features & Benefits
- Abrasion & puncture resistant: braid reinforcement stands up to rough handling and UV outdoor use.
- Clear & visible: transparent wall lets you see flow, blockages, and fluid condition.
- Flexible yet strong: easy to route while holding rated pressure without bursting.
- Lightweight: simpler to install and lower freight than rubber hose.
Customization & OEM Service
We supply OEM and private-label clear braided PVC hoses with custom inner diameter, working-pressure rating, length, and stripe color. Every coil is pressure-tested before export. Quotations returned within 24 hours.
Frequently Asked Questions
Q: What pressure can this braided PVC hose handle?
A: Working pressure is 8–20 bar depending on ID, with burst pressure at least 3× working — suitable for water and air lines.
Q: Is the clear hose food safe?
A: We offer a non-toxic food-grade version for beverage transfer; specify food-grade when requesting a quote.
Q: Can you make custom sizes and colors?
A: Yes — ID, length, and stripe color are customizable; share your spec and we return a quote within 24h.
Q: What is the MOQ?
A: 10 pcs for standard sizes; custom specs quoted separately.
