Food Grade PVC Steel Wire Reinforced Hose
Food grade PVC steel wire reinforced hose with non-toxic, FDA/EU food-contact PVC and kink-resistant steel wire helix. For beverage, dairy, and liquid food transfer. OEM/private label available. MOQ 10 pcs.
Food Grade PVC Steel Wire Reinforced Hose — Product Overview

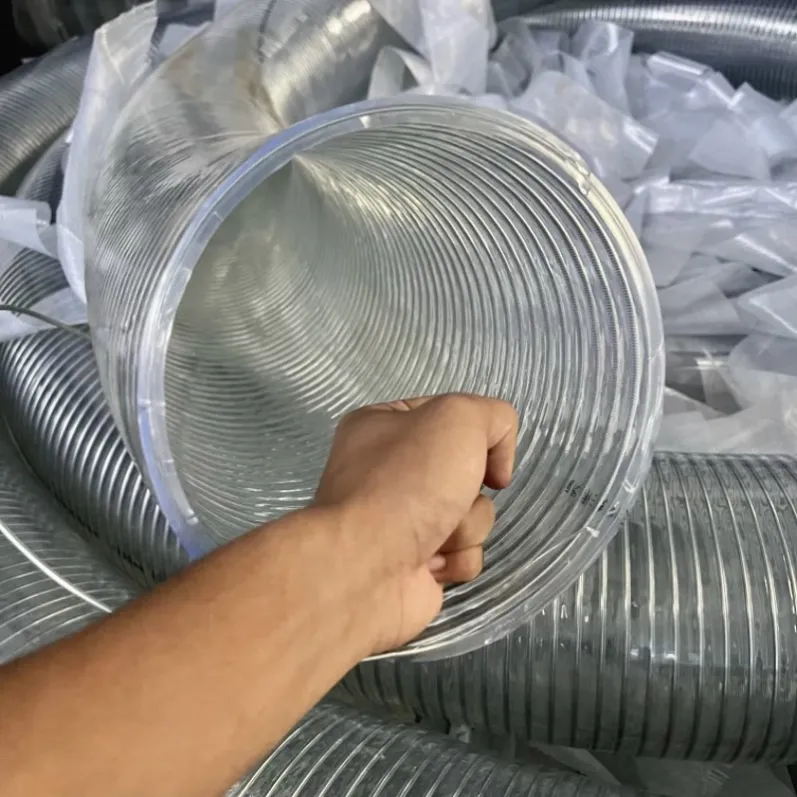

Our food grade PVC steel wire reinforced hose is a clear, non-toxic PVC ducting with a galvanized steel wire helix, engineered for safe transfer of beverages, dairy, and liquid food. The smooth bore keeps flow straight and easy to clean, while the steel wire gives the hose kink resistance and vacuum-rated collapse resistance. MOQ: 10 pcs.
Technical Specifications

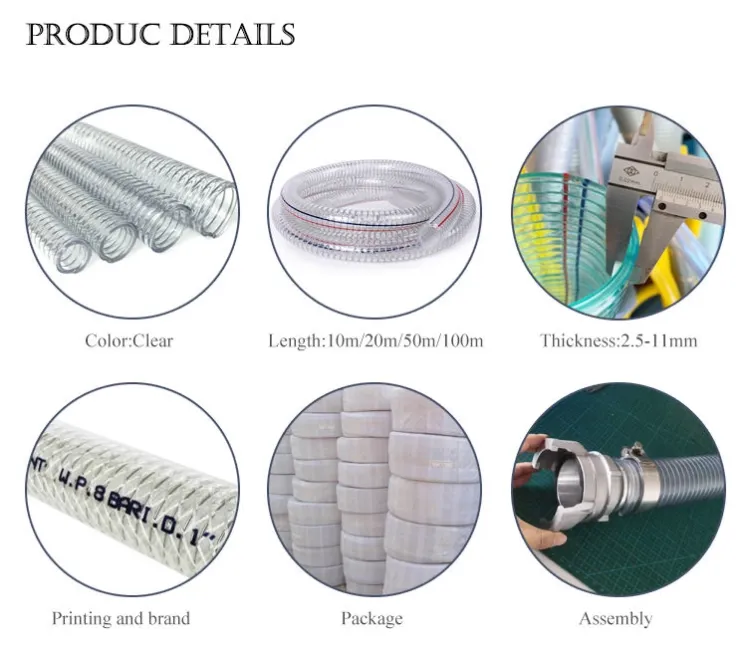

| Material | Food-contact PVC wall + galvanized steel wire helix |
| Inner / Outer | Smooth non-toxic bore, clear translucent wall |
| ID Range | 25 mm – 102 mm (1" – 4") |
| Wall Thickness | 2.5 mm – 4.0 mm (by ID) |
| Working Pressure | 0.3 – 0.8 bar (by ID) |
| Vacuum Rating | Full vacuum (wire reinforced, collapse-proof) |
| Temperature Range | -5 °C to +65 °C |
| Bend Radius | ≈ 1.0 × ID |
| Food Safety | FDA / EU food-contact compliant; odorless, non-toxic |
| Standard Length | 10 m / 20 m / 30 m / 50 m per coil, custom cut |
| Color | Transparent (custom colors on request) |

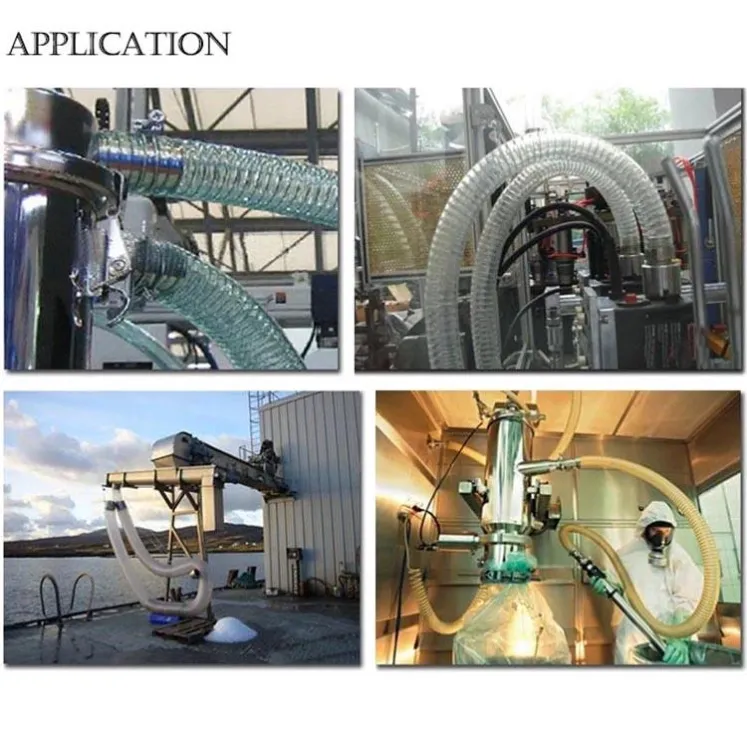

Application Scenarios
- Beverage & dairy transfer: milk, juice, beer, wine, soy milk, and soft drink lines.
- Food processing: edible oil, syrup, sauce, and liquid food conveying.
- Pharmaceutical & cosmetic: non-toxic liquid transfer where clean bore matters.
- Brewery & winery: CIP-friendly suction and delivery of liquids.
- Water & light chemical: potable water and mild food-grade fluid lines.
Key Features & Benefits
- Food safe: non-toxic PVC meets FDA / EU food-contact standards — safe for direct food contact.
- Steel wire reinforced: resists kinking and collapse under full vacuum; holds shape on bends.
- Easy to clean: smooth inner wall reduces residue and simplifies CIP rinsing.
- Transparent: lets operators spot blockages and verify flow at a glance.
Customization & OEM Service
We supply OEM and private-label food grade PVC hoses with custom inner diameter, length, wall thickness, and printing. Every coil is pressure-tested and inspected before export; food-safety certificates supplied on request. Quotations returned within 24 hours.
Frequently Asked Questions
Q: Is this hose safe for drinking water and food?
A: Yes — the PVC compound is non-toxic and complies with FDA / EU food-contact requirements for liquid food and potable water.
Q: Can it handle suction (negative pressure)?
A: Yes — the embedded steel wire makes it vacuum-rated and collapse-proof, ideal for both suction and delivery.
Q: Do you offer OEM / private label?
A: Yes — ID, length, color, and brand printing are customizable; share your spec and we return a quote within 24h.
Q: What is the MOQ?
A: 10 pcs for standard sizes; custom specs quoted separately.
