Antistaic PVC Steel Wire Reinforced Hose
Anti-static PVC steel wire reinforced hose with conductive, grounded wire for static dissipation. For combustible dust, powder, and fume extraction. Chemical resistant. OEM/private label. MOQ 10 pcs.
Anti-Static PVC Steel Wire Reinforced Hose — Product Overview

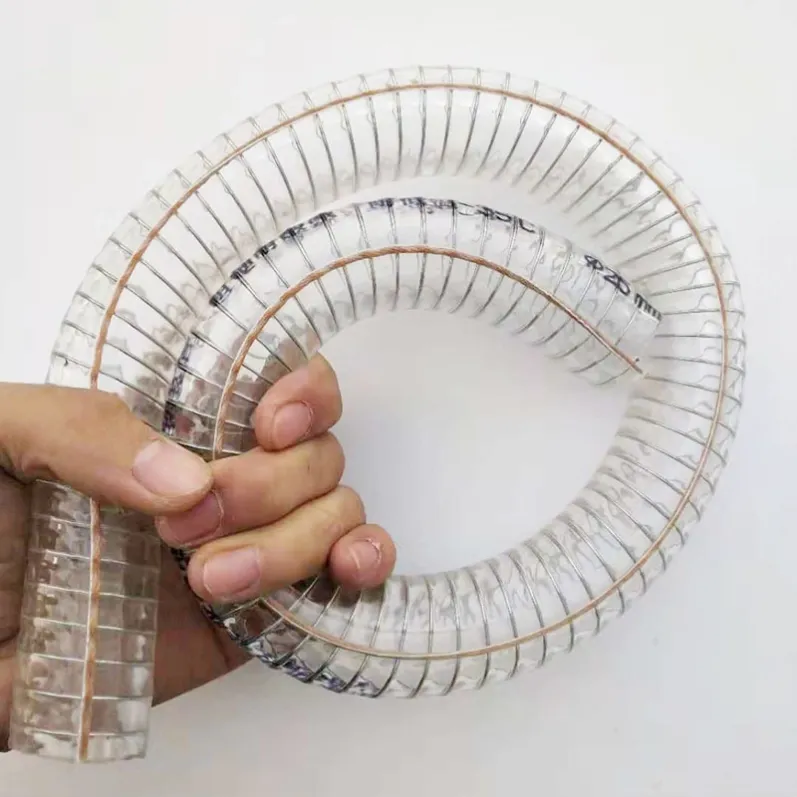

Our anti-static PVC steel wire reinforced hose (antistatic PVC ducting) is a conductive PVC hose with a steel wire helix and anti-static additive, designed to safely convey combustible dust, powder, and fumes where static sparks are a hazard. The steel wire must be grounded to dissipate charge safely. MOQ: 10 pcs.
Technical Specifications
| Material | Anti-static PVC wall + galvanized steel wire helix |
| Inner / Outer | Smooth bore, anti-static coated wall |
| ID Range | 25 mm – 200 mm (1" – 8") |
| Wall Thickness | 0.6 mm – 1.2 mm (by ID) |
| Working Pressure | 0.2 – 0.6 bar (by ID) |
| Surface Resistance | Anti-static, < 10⁹ Ω (grounded wire) |
| Temperature Range | -10 °C to +70 °C |
| Bend Radius | ≈ 1.0 × ID |
| Static Dissipation | Steel wire grounded to conduct charge away |
| Standard Length | 10 m / 15 m / 20 m per coil, custom cut |
| Color | Black / grey (custom colors on request) |
Application Scenarios
- Combustible dust extraction: wood, plastic, and powder dust where static sparks risk explosion.
- Pneumatic & vacuum conveying: static-sensitive granules, flour, and chemical powder transfer.
- Fume & welding extraction: smoke and vapor lines in welding and production.
- Explosive environments: ATEX-style zones needing conductive, grounded ducting.
- General industrial ventilation: anti-static air and material transfer lines.
Key Features & Benefits
- Anti-static safety: conductive wall + grounded steel wire dissipates static, reducing spark and dust-explosion risk.
- Steel wire reinforced: kink- and collapse-resistant under suction.
- Chemical resistant: PVC wall resists many mild acids, alkalis, and solvents.
- Flexible: coils nest for compact storage and low shipping cost.
Customization & OEM Service
We supply OEM and private-label anti-static PVC hoses with custom inner diameter, length, wall thickness, and printing. Every coil is inspected before export; quotations returned within 24 hours.
Frequently Asked Questions
Q: How does the anti-static function work?
A: The steel wire helix runs through the wall and must be grounded at the fitting end, conducting static charge safely away to prevent sparks.
Q: Is it suitable for explosive dust environments?
A: Yes — with the wire properly grounded it safely conveys combustible dust and powder; confirm your zone rating with us.
Q: Can you make non-standard sizes?
A: Yes — ID, length, and color are customizable; share your spec and we return a quote within 24h.
Q: What is the MOQ?
A: 10 pcs for standard sizes; custom specs quoted separately.
