Water Suction And Discharge Hose
Heavy-duty wrapped surface water suction & discharge hose. Helical wire reinforcement prevents collapse under full vacuum. 300m MOQ, 30m/60m coils. Premium quality factory direct wholesale.

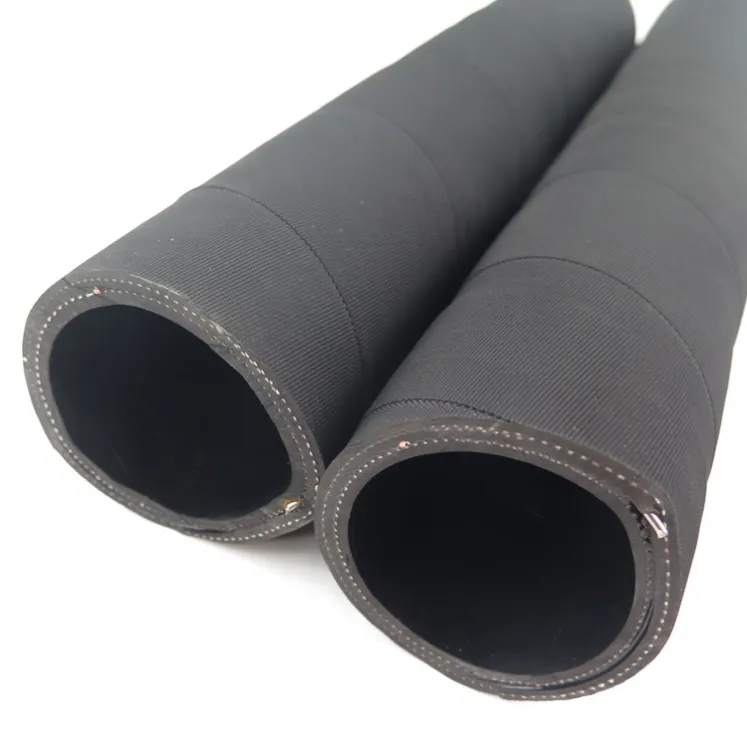

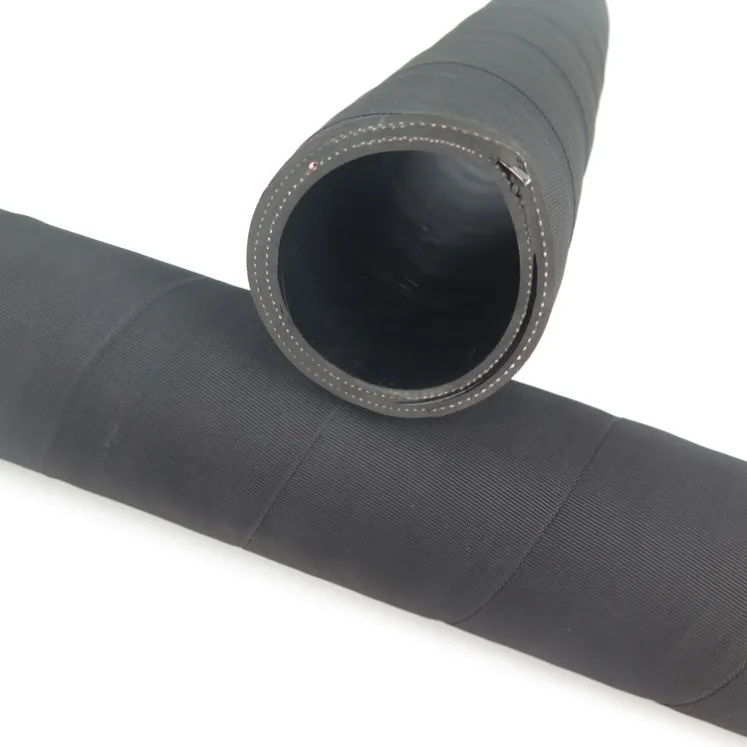

Heavy-Duty Water Suction and Discharge Hose
Optimize your heavy-duty fluid management operations with our premium Water Suction and Discharge Hose. Constructed with high-quality synthetic rubber and PVC materials, this hose is engineered to ensure outstanding durability, exceptional flexibility, and long-term resistance to abrasion, harsh weathering, and chemical corrosion. Featuring a classic wrapped surface (cloth impression cover), the outer body provides superior external wear protection, while the high-strength synthetic yarn and rigid helical steel wire reinforcement allow the hose to withstand full vacuum pressure without collapsing during suction operations.
Technical Specifications
| Product Code | Inner Diameter (ID) | Outer Diameter (OD) | Working Pressure (WP) | Burst Pressure (BP) | Weight | Standard Length | |||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | bar | psi | bar | psi | kg/m | m | |
| SY-MWSH-019 | 3/4" | 19 | 30.8 | 20 | 300 | 60 | 900 | 0.73 | 60 |
| SY-MWSH-025 | 1" | 25 | 36.8 | 20 | 300 | 60 | 900 | 0.9 | 60 |
| SY-MWSH-032 | 1-1/4" | 32 | 46.4 | 20 | 300 | 60 | 900 | 1.3 | 60 |
| SY-MWSH-038 | 1-1/2" | 38 | 53 | 20 | 300 | 60 | 900 | 1.61 | 60 |
| SY-MWSH-045 | 1-3/4" | 45 | 60.8 | 20 | 300 | 60 | 900 | 2.06 | 60 |
| SY-MWSH-051 | 2" | 51 | 66.8 | 20 | 300 | 60 | 900 | 2.3 | 60 |
| SY-MWSH-064 | 2-1/2" | 64 | 81.2 | 20 | 300 | 60 | 900 | 3.03 | 60 |
| SY-MWSH-076 | 3" | 76 | 93.2 | 20 | 300 | 60 | 900 | 3.53 | 60 |
| SY-MWSH-089 | 3-1/2" | 89 | 107.4 | 20 | 300 | 60 | 900 | 4.56 | 60 |
| SY-MWSH-102 | 4" | 102 | 120.4 | 20 | 300 | 60 | 900 | 5.16 | 60 |
| SY-MWSH-127 | 5" | 127 | 149.8 | 20 | 300 | 60 | 900 | 7.97 | 30 |
| SY-MWSH-152 | 6" | 152 | 174.8 | 20 | 300 | 60 | 900 | 9.41 | 30 |
| SY-MWSH-203 | 8" | 203 | 231.2 | 20 | 300 | 60 | 900 | 15.74 | 10 |
| SY-MWSH-254 | 10" | 254 | 286.4 | 20 | 300 | 60 | 900 | 23.67 | 10 |
| SY-MWSH-304 | 12" | 304 | 337.4 | 20 | 300 | 60 | 900 | 30.15 | 10 |
*Note: Standard stock coil lengths vary depending on the diameter sizing (ranging from 10m to 60m). Alternative batch cuts such as 30 meters or 60 meters per roll can be fully customized to meet your targeted marketplace distribution requirements.
Ordering Specifications & Wholesale Customization
- Minimum Order Quantity (MOQ): 300 meters per size to support competitive B2B factory-direct pricing.
- Coil Length Options: Available in 30 meters or 60 meters per roll, customizable to meet precise field deployment requirements.
- Premium Surface Finish: Engineered with a premium wrapped surface (cloth texture finish) for enhanced grip, superior exterior abrasion protection, and smooth handling.
- Rigid Core Engineering: Reinforced with a heavy-duty helical steel wire spiral embedded between textile plies, ensuring a perfect combination of dual suction and high-discharge pressure tasks.
High-Capacity Industrial Water & Slurry Management
Developed to perform flawlessly through demanding daily dragging across construction sites, municipal drainage projects, and mining operations, this versatile suction hose integrates a weather-defying outer protective cover that successfully isolates it against severe UV damage. The robust internal liner layer remains highly stable, ensuring an optimized fluid transfer velocity with zero clogging issues.
Industrial & General Utility Applications
- Construction Dewatering: Reliable suction lines for excavation pumping, flooded basement drainage, and wastewater removal.
- Agriculture & Irrigation: High-volume water suction and transfer for agricultural liquid storage tanks and farmland fields.
- Mining & Dredging: Suction and discharge pathways for heavy mud, light slurries, and sediment-laden wastewater.
- Municipal Emergency Service: Standard deployment utility hoses for flood control pumping systems and municipal sewage bypass routing.
Why Choose Our Wrapped Suction & Discharge Hose?
As an established high-capacity industrial hose manufacturer, we supply global B2B buyers with certified suction ducts built for extreme longevity. Our proprietary vulcanized compound delivers exceptional performance at a highly competitive wholesale pricing structure. Reach out to our technical sales division today for volume price sheets and tailored private-label branding options.
Frequently Asked Questions (FAQs)
Q1: What are the main benefits of a wrapped surface on a suction hose?
A: The wrapped surface (cloth impression finish) provides superior external abrasion resistance. It stops the hose cover from tearing when it is dragged across rough concrete or gravel. It also improves handling grip for operators when working in wet or muddy conditions.
Q2: Can I order alternative cut lengths such as continuous 30m or 60m rolls?
A: Yes, absolutely. Beyond the standard mill configurations listed in our technical data table, we support full custom roll cutting. We can package each batch into 30-meter or 60-meter continuous coils depending on your customer requirements.
Q3: Does the internal helical wire support full vacuum suction applications?
A: Yes. The integrated high-strength helical steel wire spiral reinforcement is engineered to handle both high discharge pressure and full vacuum suction forces. This preventing the internal core wall from collapsing or buckling under intensive negative pressure systems.
Q4: Why do you enforce a 300-meter MOQ for wholesale orders?
A: Setting a 300-meter minimum order threshold per size lets us maximize our heavy-duty extrusion efficiency. This production advantage lowers processing costs and allows us to provide the most competitive factory-direct pricing for international distributors.
