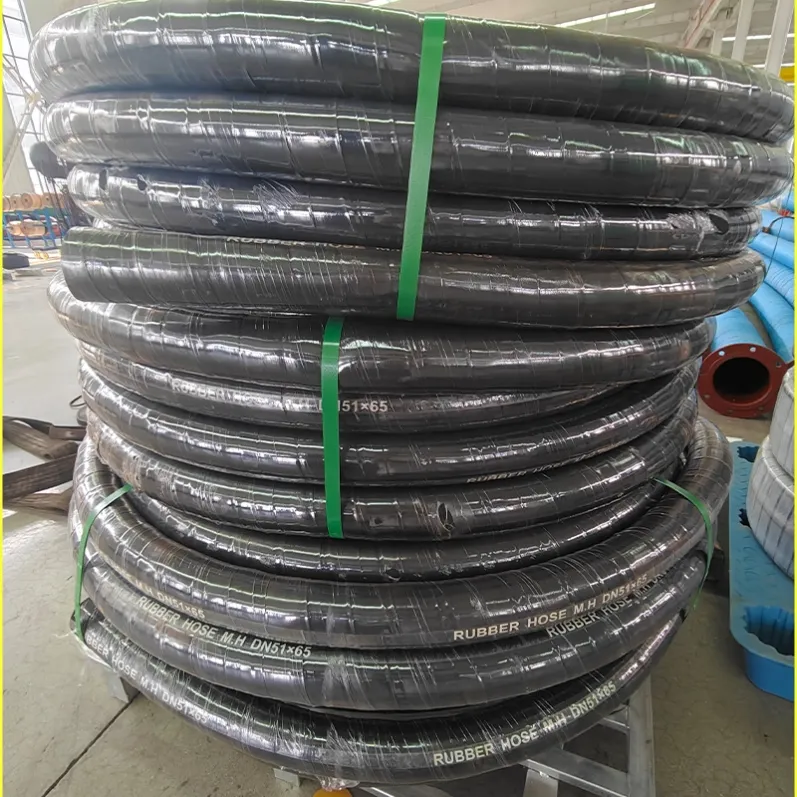

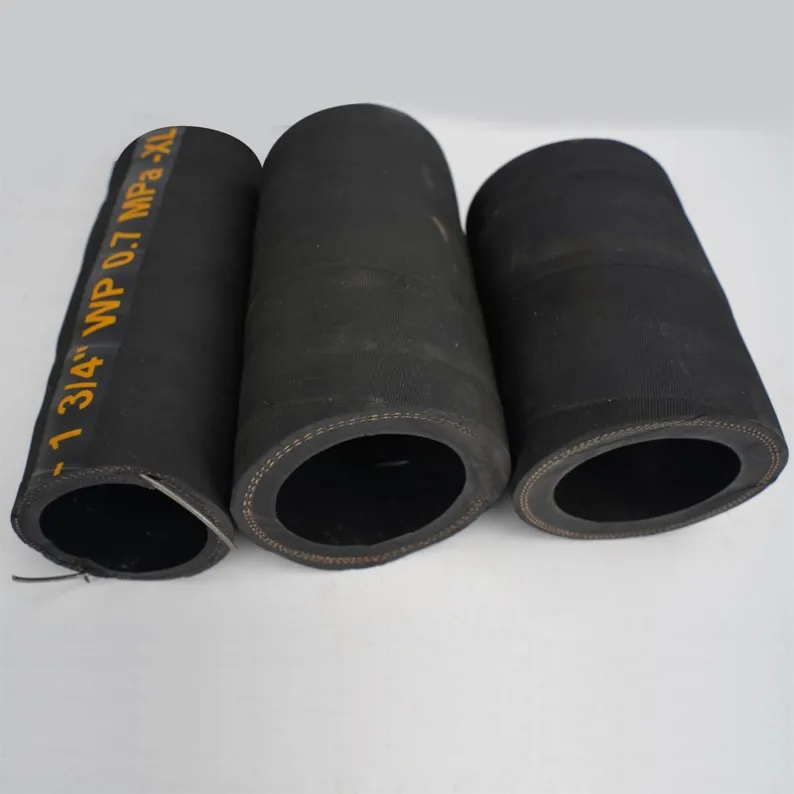

Oil Suction And Delivery Hose
The Oil Suction and Delivery Hose is specifically designed to efficiently transfer oil and petroleum-based products in various industrial and commercial applications.
Industrial Oil Suction and Delivery Hose
Optimize your petroleum fluid transfer operations with our premium Oil Suction and Delivery Hose. Specifically designed to efficiently transfer crude oil, diesel, gasoline, and other petroleum-based products, this heavy-duty hose ensures ultimate reliability in various industrial and commercial applications. Engineered with a specialized oil-resistant synthetic rubber inner tube, it withstands aromatic hydrocarbon content, while the high-strength textile reinforcement plies and integrated helical steel wire spiral prevent collapsing under full vacuum suction or bursting under high discharge pressures.
Technical Specifications
| Product Code | Inner Diameter (ID) | Outer Diameter (OD) | Working Pressure (WP) | Burst Pressure (BP) | Weight | Standard Length | |||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | bar | psi | bar | psi | kg/m | m | |
| SY-MOSD-019 | 3/4" | 19 | 30.8 | 20 | 300 | 60 | 900 | 0.74 | 60 |
| SY-MOSD-025 | 1" | 25 | 36.8 | 20 | 300 | 60 | 900 | 0.92 | 60 |
| SY-MOSD-032 | 1-1/4" | 32 | 46.4 | 20 | 300 | 60 | 900 | 1.33 | 60 |
| SY-MOSD-038 | 1-1/2" | 38 | 53 | 20 | 300 | 60 | 900 | 1.65 | 60 |
| SY-MOSD-045 | 1-3/4" | 45 | 60.8 | 20 | 300 | 60 | 900 | 2.11 | 60 |
| SY-MOSD-051 | 2" | 51 | 66.8 | 20 | 300 | 60 | 900 | 2.35 | 60 |
| SY-MOSD-064 | 2-1/2" | 64 | 81.2 | 20 | 300 | 60 | 900 | 3.1 | 60 |
| SY-MOSD-076 | 3" | 76 | 93.2 | 20 | 300 | 60 | 900 | 3.6 | 60 |
| SY-MOSD-089 | 3-1/2" | 89 | 107.4 | 20 | 300 | 60 | 900 | 4.65 | 60 |
| SY-MOSD-102 | 4" | 102 | 120.4 | 20 | 300 | 60 | 900 | 5.27 | 60 |
| SY-MOSD-127 | 5" | 127 | 149.8 | 20 | 300 | 60 | 900 | 8.12 | 30 |
| SY-MOSD-152 | 6" | 152 | 174.8 | 20 | 300 | 60 | 900 | 9.58 | 30 |
| SY-MOSD-203 | 8" | 203 | 231.2 | 20 | 300 | 60 | 900 | 16 | 10 |
| SY-MOSD-254 | 10" | 254 | 286.4 | 20 | 300 | 60 | 900 | 24.05 | 10 |
| SY-MOSD-304 | 12" | 304 | 338.4 | 20 | 300 | 60 | 900 | 30.63 | 10 |
*Note: Standard continuous warehouse lengths vary based on the inner diameter configuration. Batch production can be fully custom-cut to alternative options such as 20 meters, 40 meters, or 60 meters per coil to better accommodate your exact marketing and fleet deployment standards.
Ordering Specifications & Bulk Customization Options
- Minimum Order Quantity (MOQ): 300 meters per size to support competitive B2B factory-direct wholesale pricing.
- Coil Length Options: Highly adaptable roll choices available in continuous lengths of 20 meters, 40 meters, or 60 meters per roll.
- Premium Oil Resistance: Formulated using high-grade nitrile synthetic rubber compound, protecting the inner liner against chemical erosion caused by petroleum-based materials with up to 50% aromatic content.
- Anti-Collapse Engineering: Reinforced with high-tensile textile plies and a heavy-duty hidden helical steel wire spiral for maximum suction capacity and pressure rating stability.
Heavy-Duty Petroleum Transit & Fuel Delivery
Developed to perform flawlessly through demanding daily dragging across docks, oil refineries, and tank truck loading stations, this versatile oil suction hose integrates a weather-defying outer protective cover that successfully isolates it against severe UV damage and oil splashes. The antistatic copper wire design provides necessary static dissipation for maximum safety during volatile fuel transfers.
Industrial & Petroleum Utility Applications
- Tank Truck & Railcar Transit: Flexible suction and discharge pathways for loading and unloading fuel transport vehicles.
- Oil Refineries & Storage: General utility transfers for crude oil, diesel, fuel oils, and lubricating oils within processing plants.
- Shipbuilding & Bunkering: Reliable marine fuel delivery and bunkering lines capable of handling constant moisture and rough handling.
- Industrial Manufacturing: Fuel supply systems for large-scale boiler units, backup power generators, and hydraulic stations.
Why Choose Our Oil Suction & Delivery Hose?
As an established high-capacity industrial hose manufacturer, we supply global B2B buyers with certified petroleum ducts built for extreme longevity. Our proprietary vulcanized compound delivers exceptional flexible performance at a highly competitive B2B wholesale pricing structure. Reach out to our technical sales division today for volume price sheets and tailored private-label branding options.
Frequently Asked Questions (FAQs)
Q1: Can this hose handle high-aromatic fuels like premium gasoline?
A: Yes. The internal liner tube is constructed from premium nitrile synthetic rubber, which provides exceptional resistance to refined petroleum products, including diesel, oils, and gasolines with an aromatic hydrocarbon content up to 50% without causing core swelling or delamination.
Q2: Can I order specific custom coil lengths like 20m or 40m?
A: Yes, absolutely. Beyond the standard mill configurations listed in our technical data table, we offer full custom roll cutting services. We can package each batch into 20-meter, 40-meter, or 60-meter continuous coils depending on your localized distribution requirements.
Q3: Does the hose feature static electricity protection for safe fuel transfer?
A: Yes, safety is a core priority. Our oil suction and delivery hoses can be integrated with embedded anti-static copper wires running through the reinforcement layer. When correctly grounded to the couplings, it successfully dissipates static electricity build-up during volatile fuel transfers.
Q4: Why do you enforce a 300-meter MOQ for wholesale orders?
A: Setting a 300-meter minimum order threshold per size lets us maximize our heavy-duty extrusion efficiency. This production advantage lowers processing costs and allows us to provide the most competitive factory-direct pricing for international distributors.
