Food Delivery Hose
The Food Delivery Hose is a highly reliable and efficient product specifically designed for the safe transportation of food and beverage products in various industries.

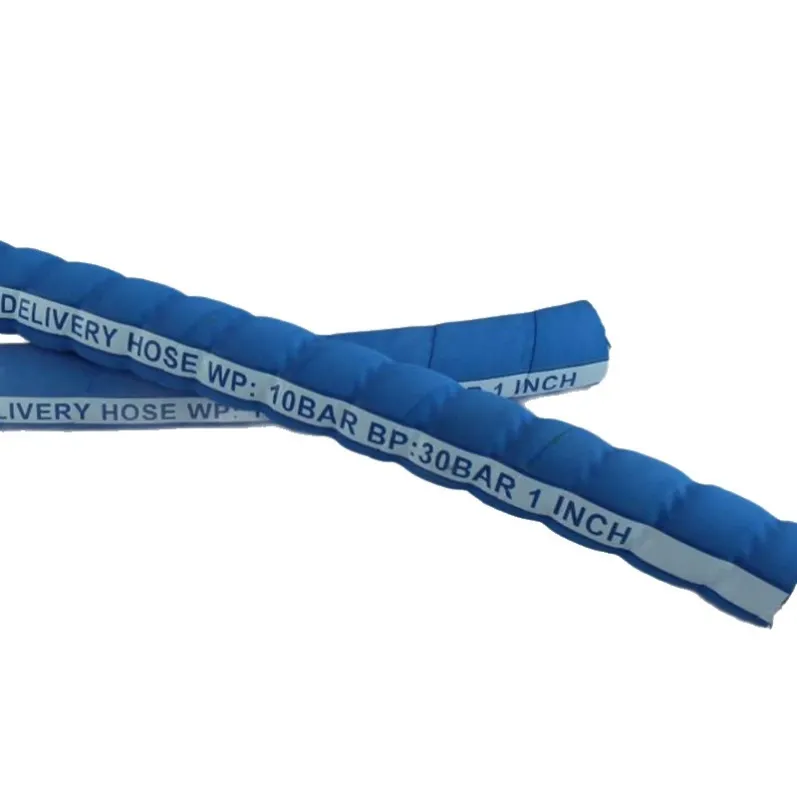

Lightweight Food Delivery Hose
Optimize your hygienic fluid processing and beverage distribution networks with our premium Food Delivery Hose. Specifically engineered for positive-pressure transfer applications, this high-grade food-grade rubber hose features a lightweight structure. By eliminating the heavy steel wire helix commonly found in traditional suction hoses, it delivers superior flexibility, excellent ergonomic handling, and effortless routing. It is the premier sanitation standard choice for tank truck unloading, dairy liquid transit, and food processing line feeding operations.
Technical Specifications
| Product Code | Inner Diameter (ID) | Outer Diameter (OD) | Working Pressure (WP) | Burst Pressure (BP) | Weight | Standard Length | |||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | bar | psi | bar | psi | kg/m | m | |
| SY-MFDH-006 | 1/4" | 6 | 14 | 10 | 150 | 30 | 450 | 0.18 | 100 |
| SY-MFDH-008 | 5/16" | 8 | 16 | 10 | 150 | 30 | 450 | 0.21 | 100 |
| SY-MFDH-010 | 3/8" | 10 | 18 | 10 | 150 | 30 | 450 | 0.25 | 100 |
| SY-MFDH-013 | 1/2" | 13 | 22 | 10 | 150 | 30 | 450 | 0.35 | 100 |
| SY-MFDH-016 | 5/8" | 16 | 26 | 10 | 150 | 30 | 450 | 0.46 | 100 |
| SY-MFDH-019 | 3/4" | 19 | 29 | 10 | 150 | 30 | 450 | 0.53 | 100 |
| SY-MFDH-025 | 1" | 25 | 37 | 10 | 150 | 30 | 450 | 0.72 | 100 |
| SY-MFDH-032 | 1-1/4" | 32 | 43.4 | 10 | 150 | 30 | 450 | 0.95 | 60 |
| SY-MFDH-038 | 1-1/2" | 38 | 51 | 10 | 150 | 30 | 450 | 1.2 | 60 |
| SY-MFDH-051 | 2" | 51 | 64 | 10 | 150 | 30 | 450 | 1.55 | 60 |
| SY-MFDH-064 | 2-1/2" | 64 | 77.8 | 10 | 150 | 30 | 450 | 2.17 | 60 |
| SY-MFDH-076 | 3" | 76 | 89.8 | 10 | 150 | 30 | 450 | 2.54 | 60 |
| SY-MFDH-102 | 4" | 102 | 116.6 | 10 | 150 | 30 | 450 | 3.44 | 60 |
| SY-MFDH-152 | 6" | 152 | 167.4 | 10 | 150 | 30 | 450 | 5.41 | 30 |
*Note: Standard continuous warehouse lengths vary based on the inner diameter configuration. Alternate batch custom lengths such as 30 meters, 60 meters, or 100 meters per coil can be fully tailored to accommodate your exact distribution requirements.
Ordering Specifications & Bulk Customization Options
- Minimum Order Quantity (MOQ): 300 meters per size to support competitive B2B factory-direct wholesale pricing scales.
- Coil Length Options: Highly adaptable roll choices available in continuous lengths of 30 meters, 60 meters, or 100 meters per roll.
- FDA-Compliant Core Layer: Manufactured with an ultra-smooth, food-grade internal tube that prevents bacterial growth and does not impart any taste or odor to the transferred media.
- High Flexibility Structure: Reinforced with high-tensile synthetic textile yarn plies without a rigid steel wire helix, making the hose incredibly flexible and easy to handle during high-frequency routine deployments.
Hygienic Positive-Pressure Food & Beverage Transfer
Developed to perform flawlessly within stringent food production plants, breweries, and dairy processing facilities, this versatile food delivery hose integrates an ozone-resistant and weather-defying outer protective cover. The smooth inner core layer remains highly stable under regular hot water washdowns and mild CIP (Clean-In-Place) sanitation cycles, ensuring an optimized fluid transfer velocity with zero contamination risks.
Industrial Food Processing Applications
- Dairy & Milk Transit: High-purity flexible transfer paths for fluid milk, cream, whey, and alternative liquid dairy products.
- Beverage & Brewery Operations: Routing pipelines for beers, wines, fruit juices, potable water, and non-fat liquids.
- Tank Truck Unloading: Ergonomic, easy-to-drag transfer lines for discharging raw food liquids into main storage vats.
- Process Line Feeding: Flexible connections between manufacturing machinery, filling stations, and distribution hoppers.
Why Choose Our Food Delivery Hose?
As an established high-capacity industrial hose manufacturer, we supply global B2B buyers with certified food-grade ducts built for extreme longevity and safety compliance. Our proprietary sanitary compound delivers exceptional flexible performance at a highly competitive B2B wholesale pricing structure. Reach out to our technical sales division today for volume price sheets and tailored private-label branding options.
Frequently Asked Questions (FAQs)
Q1: Can this hose be used for vacuum or suction applications?
A: No. This specific food delivery hose is uniquely designed for positive-pressure delivery and discharge applications. Because it eliminates the rigid steel wire spiral helix to remain lightweight and highly flexible, it should not be used in vacuum suction lines where core collapse could occur.
Q2: Can I order specific custom coil lengths like continuous 30m or 60m rolls?
A: Yes, absolutely. Beyond the standard mill configurations listed in our technical data table, we support full custom roll cutting services. We can package each batch into 30-meter, 60-meter, or 100-meter continuous coils depending on your localized distribution requirements.
Q3: Does the internal tube impart any chemical taste or smell to beverages?
A: Not at all. The internal tube is constructed from high-grade, food-quality rubber resins that meet strict sanitary standards. It is completely odorless and tasteless, ensuring that premium fluids like milk, beer, or wine maintain 100% of their organic sensory qualities during transfer.
Q4: Why do you enforce a 300-meter MOQ for wholesale orders?
A: Setting a 300-meter minimum order threshold per size lets us maximize our heavy-duty extrusion efficiency. This production advantage lowers processing costs and allows us to provide the most competitive factory-direct pricing for international distributors.
Customization & OEM Service
ShengYa supplies Food Delivery Hose to distributors, hose assemblers and OEM equipment builders worldwide. We support full customization on every order:
- Size & specification: non-standard bore, wall thickness, length or pressure rating built to your drawing or sample.
- Material & construction: compound, cover colour, reinforcement and helix options selected to match the conveyed medium.
- Branding: printed or embossed logo, part number and barcode, plus private-label packaging.
- Assembly: cut lengths, fitted couplings, clamps and pre-assembled hose sets ready to install.
- Documentation: material certificate, dimensional and pressure-test reports supplied on request.
Typical MOQ is 500 m (or 500 pcs for fittings) per size for customized production and lower for stocked items. Standard lead time is 15–25 days, and samples are available for evaluation before bulk order.
Frequently Asked Questions
Is this hose suitable for food contact?
Yes. The food delivery hose is produced with a food-grade smooth tube that complies with EU and FDA food contact requirements for liquid food transfer. Confirm your specific medium and temperature with us and we will match the correct grade and supply the compliance documentation.
What is your minimum order quantity?
For stocked specifications the MOQ is typically 100 m (or 100 pcs for fittings) per size. For customized production the usual MOQ is 500 m or 500 pcs per size, depending on material and tooling.
Can you produce to my own specification or brand?
Yes. We regularly produce to customer drawings and samples, including non-standard sizes, compounds and cover colours, and we can print or emboss your logo and supply private-label packaging.
What is the lead time, and can I get samples first?
Stocked items normally ship in 7–15 days and customized production in 15–25 days. Samples are available so you can test the product in your application before placing a bulk order.
