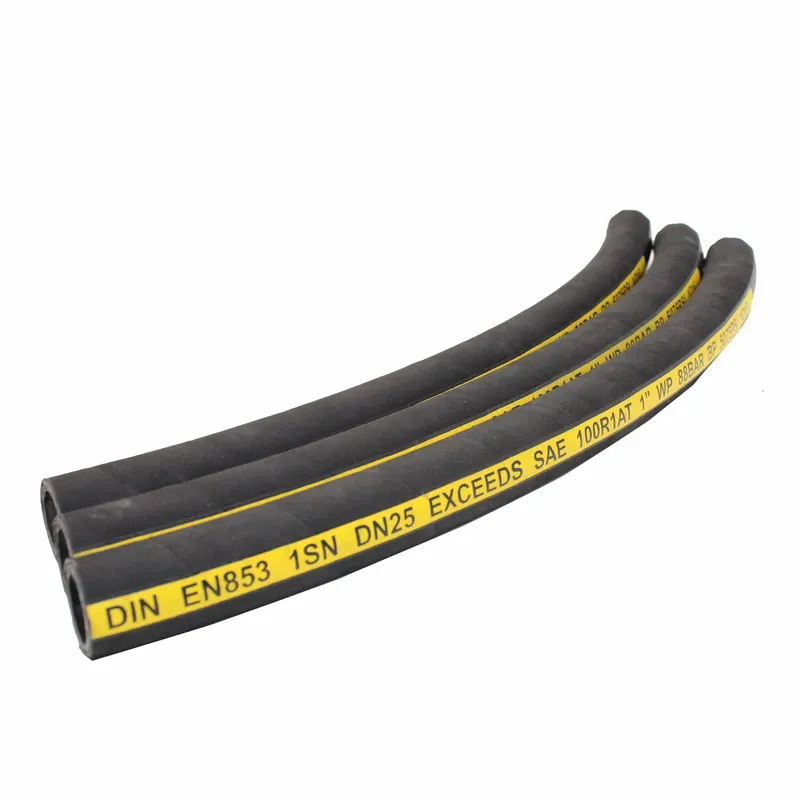

SAE 100R1AT / 1SN High Pressure Hydraulic Hose: High Flexibility Rubber Pipe
Premium Single Steel Wire Braided Flexible Hydraulic Hose Manufacturer
Our premium SAE 100R1AT / DIN EN 853 1SN High Pressure Hydraulic Hose is specifically engineered for medium to high-pressure hydraulic fluid transmission. Combining high flexibility with a lightweight profile, this heavy-duty rubber hose provides increased working pressure and an extended service lifetime. Manufactured with a premium NBR synthetic rubber core, it delivers outstanding dependability under rugged mobile, industrial, and agricultural environments.
- Minimum Order Quantity (MOQ): 500 Meters
- OEM & Customization Support: Custom hose dimensions, multi-color outer covers, and custom text/logo branding printing accepted.
- 100% Quality Assured: Strict quality control testing utilizing a complete line of high-precision pressure testing machines before delivery.
- Risk-Free Procurement: Free hose samples are available upon request for quality and dimension verification.
Premium Hose Construction & Technical Features
- Inner Tube: Oil-resistant, abrasion-resistant, and anti-aging NBR (Nitrile) synthetic rubber compound.
- Reinforcement: One high-density braid of high-tensile steel wire for maximum structural strength.
- Outer Cover: Weather, ozone, and abrasion-resistant synthetic rubber (Available in Black or specialized custom colors).
- Operating Temperature Range: Reliable thermal performance from -40ºC to +100ºC (-40ºF to +212ºF).
- Tight Tolerance Control: Precision engineered with a strict dimension tolerance of only ±0.05mm.
Technical Specifications & DIN/SAE Standard Sizes
| Part Number | Hose Inside Diameter (I.D.) | Hose Outside Diameter (O.D.) | Max. Working Pressure | Min. Burst Pressure | Standard Length | |||
|---|---|---|---|---|---|---|---|---|
| inch | mm | DIN Dash Size | inch | mm | MPa | MPa | m / Roll | |
| SY1SN-03 | 3/16" | 4.8 | -3 | 0.470 | 11.9 | 25.0 | 100.1 | 50 / 100 |
| SY1SN-04 | 1/4" | 6.4 | -4 | 0.534 | 13.6 | 22.5 | 90.2 | 50 / 100 |
| SY1SN-05 | 5/16" | 7.9 | -5 | 0.595 | 15.1 | 21.5 | 86.0 | 50 / 100 |
| SY1SN-06 | 3/8" | 9.5 | -6 | 0.689 | 17.5 | 18.0 | 72.1 | 50 / 100 |
| SY1SN-08 | 1/2" | 12.7 | -8 | 0.813 | 20.7 | 16.0 | 64.0 | 50 / 100 |
| SY1SN-10 | 5/8" | 15.9 | -10 | 0.938 | 23.8 | 13.0 | 52.1 | 50 / 100 |
| SY1SN-12 | 3/4" | 19.0 | -12 | 1.096 | 27.8 | 10.5 | 42.2 | 50 / 100 |
| SY1SN-16 | 1" | 25.4 | -16 | 1.408 | 35.8 | 8.8 | 35.3 | 50 / 100 |
| SY1SN-20 | 1 1/4" | 31.8 | -20 | 1.696 | 43.1 | 6.3 | 25.4 | 50 / 100 |
| SY1SN-24 | 1 1/2" | 38.1 | -24 | 1.971 | 50.1 | 5.0 | 20.1 | 50 / 100 |
| SY1SN-32 | 2" | 50.8 | -32 | 2.503 | 63.6 | 4.0 | 16.0 | 50 / 100 |
*Packaging Options: Securely wrapped by heavy-duty poly stripes, woven bags, or customized pallets as per your shipping requirements. Standard delivery time is roughly 35 days for a full 20ft container.
Wide Commercial & Industrial Applications
This single wire braided high-flexibility hydraulic pipe is universally deployed across medium-pressure hydraulic circuits using petroleum or water-based hydraulic fluids:
- Mobile Equipment: Forklifts, excavators, dump trucks, cranes, and heavy construction machinery.
- Agricultural Machinery: Tractors, combined harvesters, seeders, and fluid systems on commercial farms.
- Machine Tools: Industrial manufacturing presses, automation equipment, and hydraulic power units.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between SAE 100R1AT and DIN EN 853 1SN?
A: Both standards refer to a high-pressure single steel wire braided hydraulic hose. However, the 1SN standard requires a thinner outer rubber cover, allowing for direct crimping without skiving (non-skive fitting connections), which significantly accelerates hose assembly assembly speed.
Q2: Can this flexible hydraulic hose handle water-based fluids as well as petroleum oils?
A: Yes. The premium NBR synthetic inner tube formulation guarantees seamless chemical compatibility with both petroleum-based hydraulic oils and water-based hydraulic fluids without swelling or degrading.
Q3: How do you guarantee the burst pressure safety limits before shipping?
A: Quality is our priority. We enforce an unyielding quality control protocol using advanced testing machines. Every batch of 1SN hoses is tested for impulse endurance, working pressure tight tolerances, and burst safety factor margins to ensure optimal on-site safety.
Q4: Do you offer customized printing lines and private labeling for wholesale clients?
A: Yes. As an experienced OEM supplier, we can print your proprietary brand name, logos, part numbers, and standard tracking lines directly onto the hose body cover surface based on our 500-meter production line MOQ.
