Dry Cement Suction And Delivery Hose
Buy bulk Dry Cement Suction and Delivery Hose with anti-static NR/BR lining. Perfect for cement plants, bulk tankers & slurry transfer. Resists extreme abrasion. MOQ 300m
Dry Cement Suction and Delivery Hose: Heavy Duty Bulk Powder Transfer Pipe
Premium NR/SBR Anti-Static Rubber Hose for Cement Plants & Bulk Tankers
Our heavy-duty Dry Cement Suction and Delivery Hose is specifically engineered to handle the high-velocity transfer of highly abrasive dry materials, concrete slurry, and bulk powders. Whether deployed in cement manufacturing plants, bulk powder tankers, or demanding construction sites, this premium industrial rubber hose ensures uninterrupted material flow and maximum wear life.
- Minimum Order Quantity (MOQ): 300 Meters
- Anti-Static Safety: Formulated with premium anti-static rubber compounding to eliminate dangerous static buildup caused by continuous dry powder friction.
- Dual-Purpose Design: Reinforced construction optimized flawlessly for both high-vacuum suction (negative pressure) and discharge delivery (positive pressure) applications.
Premium Material Construction & Engineering

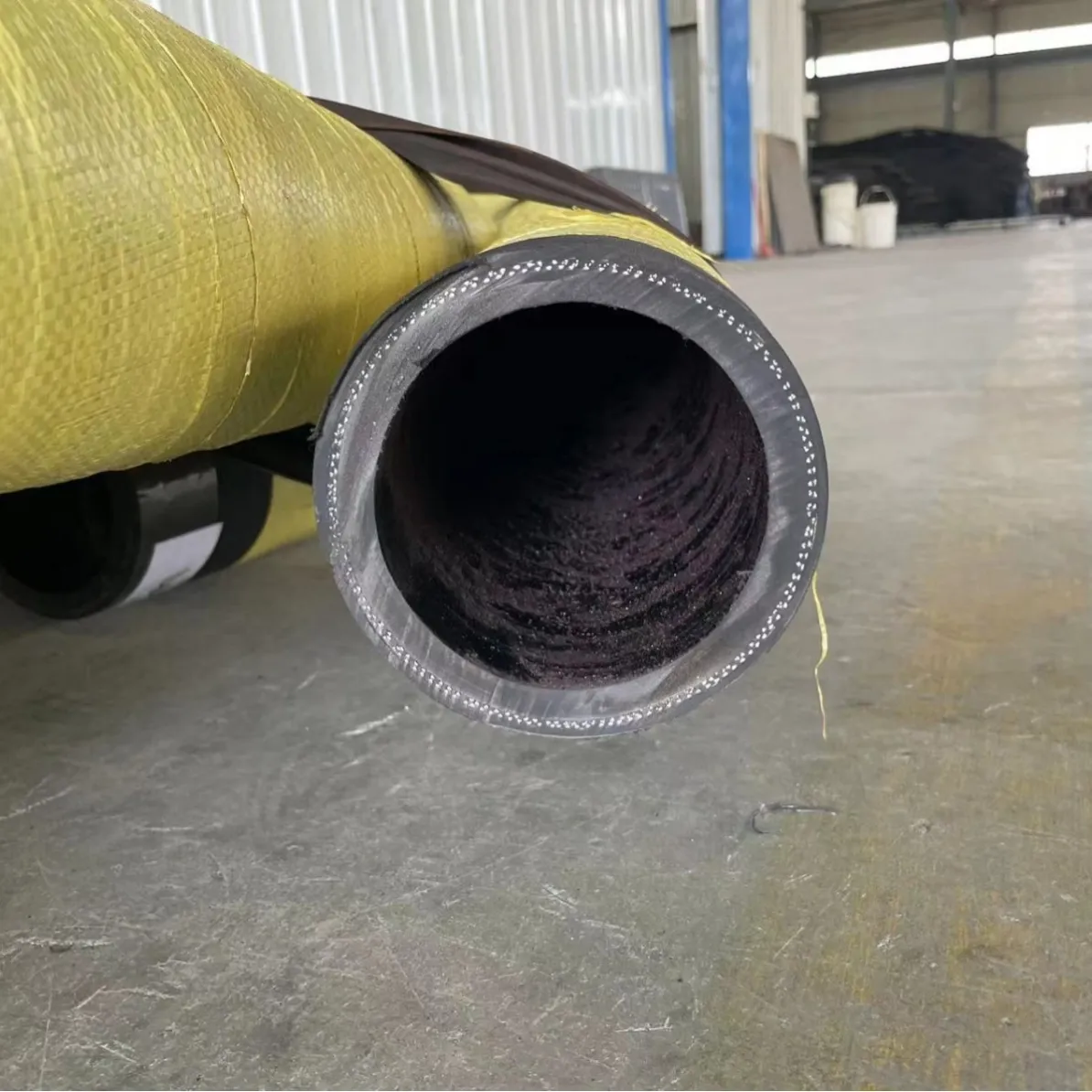

- Inner Tube: Black, smooth, anti-static NR/BR (Natural Rubber/Butadiene Rubber) compound engineered for industry-leading wear resistance against sharp cement particles and limestone.

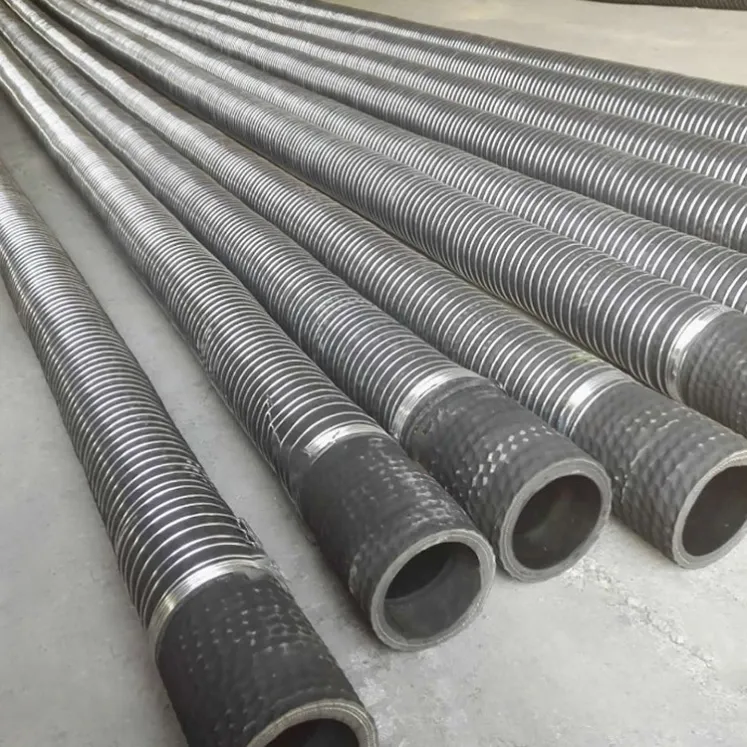

- Reinforcement: Multi-layer high-strength synthetic cord integrated with steel wire helix to provide ultimate collapse resistance under full vacuum/suction.
- Outer Cover: Black, SBR/NR rubber compound with a rugged cloth impression finish. Exceptionally resistant to ozone, harsh weather, scraping, and heavy external abrasion.
- Operating Temperature Range: Outstanding reliability from -20°C to +80°C (-4°F to +176°F).
Technical Specifications & Product Sizes
| Inside Diameter (I.D.) | Outside Diameter (O.D.) | Working Pressure (W.P.) | Burst Pressure (B.P.) | Bending Radius | Nominal Weight | Standard Length | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | bar | psi | bar | psi | mm | kg/m | ft | m |
| 2" | 51 | 66 | 10 | 150 | 30 | 450 | 400 | 1.78 | 200 | 61 |
| 2-1/2" | 64 | 80 | 10 | 150 | 30 | 450 | 500 | 2.46 | 200 | 61 |
| 3" | 76 | 95 | 10 | 150 | 30 | 450 | 500 | 3.47 | 200 | 61 |
| 3-1/2" | 89 | 108 | 10 | 150 | 30 | 450 | 600 | 4.09 | 200 | 61 |
| 4" | 102 | 124 | 10 | 150 | 30 | 450 | 700 | 5.35 | 200 | 61 |
| 5" | 127 | 149 | 10 | 150 | 30 | 450 | 800 | 6.53 | 200 | 61 |
| 6" | 152 | 174 | 10 | 150 | 30 | 450 | 900 | 7.83 | 200 | 61 |
Industrial Applications
This premium bulk powder discharge hose is engineered for high-intensity media handling across heavy industries:
- Bulk Material Handling: Delivering dry cement, pebble lime, sand, fly ash, and other aggressive abrasive powders.
- Logistics & Transportation: Loading and unloading bulk powder tank trucks, trailers, and railcars.
- Construction Engineering: Suction and discharge of concrete slurries, structural mortars, and drilling muds.
- Manufacturing Plants: In-plant transfer lines for pneumatic conveying systems in concrete batching plants.
Frequently Asked Questions (FAQ)
Q1: What materials can be transferred using the Dry Cement Suction and Delivery Hose?
A: It is ideal for highly abrasive dry materials and slurries, including dry cement, pebble lime, fly ash, limestone powder, gravel particles, and sand blends.
Q2: Why is the anti-static NR/BR lining crucial for bulk powder transfer?
A: Moving dry cement at high speeds generates massive friction, leading to severe static electricity buildup. Our anti-static rubber formulation completely discharges this electricity, ensuring a safe working environment and preventing ignition hazards or operator shocks.
Q3: Does this hose collapse under full vacuum during suction applications?
A: No. Unlike simple delivery hoses, our suction and delivery hose features heavy-duty high-strength synthetic cords coupled with an integrated helix steel wire reinforcement to withstand intense negative vacuum pressure without flattening.
Q4: What is the standard length and minimum order quantity (MOQ)?
A: Our standard production length is 61 meters (200 ft) per roll, providing seamless lengths for bulk tankers. The standard minimum order quantity (MOQ) for this high-grade industrial series is 300 meters.
Q5: Can I request customized dimensions, branding, or specific outer cover colors?
A: Yes! As a premier industrial hose partner, we support customized branding stripes, embossed layouts, custom wall thicknesses, and special packaging to suit your local market demands. Please contact our sales team with your technical specifications.
Customization & OEM Service
ShengYa supplies Dry Cement Suction And Delivery Hose to distributors, hose assemblers and OEM equipment builders worldwide. We support full customization on every order:
- Size & specification: non-standard bore, wall thickness, length or pressure rating built to your drawing or sample.
- Material & construction: compound, cover colour, reinforcement and helix options selected to match the conveyed medium.
- Branding: printed or embossed logo, part number and barcode, plus private-label packaging.

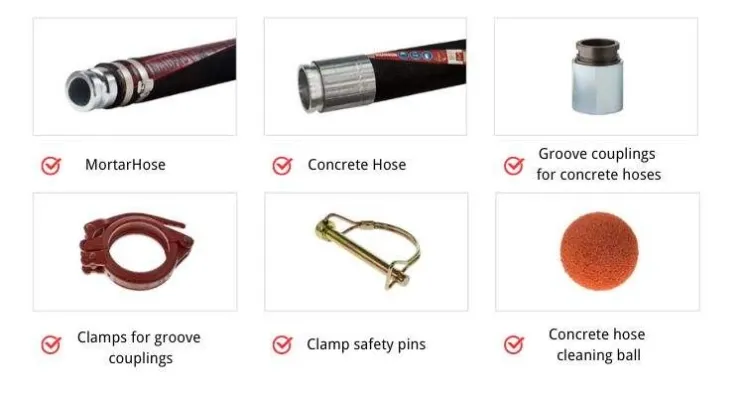

- Assembly: cut lengths, fitted couplings, clamps and pre-assembled hose sets ready to install.
- Documentation: material certificate, dimensional and pressure-test reports supplied on request.
Typical MOQ is 500 m (or 500 pcs for fittings) per size for customized production and lower for stocked items. Standard lead time is 15–25 days, and samples are available for evaluation before bulk order.
