SY-MCDH Chemical Delivery Hose: Flexible UHMWPE Chemical Transfer Pipe
High-Quality Chemical Resistance with Lightweight Design
Our SY-MCDH Chemical Delivery Hose is specifically engineered for positive-pressure chemical transfer. It delivers exceptional chemical resistance without the unnecessary weight and high cost of traditional suction-rated construction. Featuring a premium UHMWPE lining, this hose offers a lighter, more flexible solution for demanding industrial fluid handling.
- Minimum Order Quantity (MOQ): 300 Meters
- Key Benefit:** Handles up to 98% of all industrial chemicals, solvents, and corrosive liquids.
Key Features & Premium Material Construction

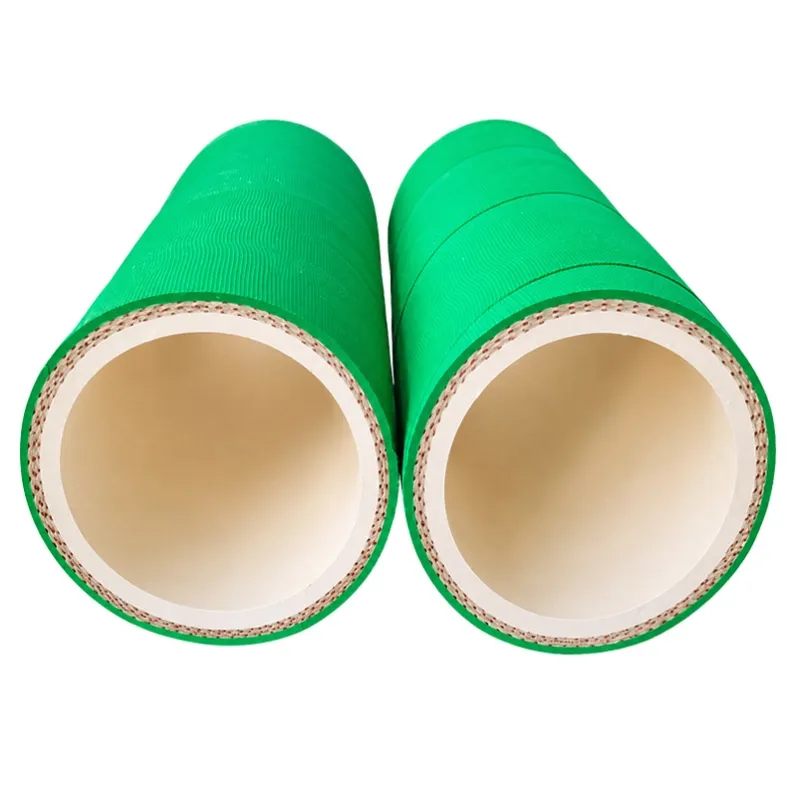

1. Advanced Multi-Layer Tube Construction
- Inner Tube: Translucent, food-grade UHMW-PE liner combined with white color EPDM rubber, ensuring purity and broad compatibility.
- Reinforcement: Multi-plies high tensile textile synthetic yarn, integrated with helix steel wire and an antistatic copper wire for superior safety and grounding.
- Outer Cover: Green color, EPDM synthetic rubber with a wrapped surface, delivering outstanding weather and abrasion resistance.
2. High Performance Specifications
- Working Temperature: Wide range from -40℃ to 100℃ (-40°F to +212°F).
- Safety Factor: 4:1 (Burst Pressure is 4 times the Working Pressure).
Technical Specifications & Product Sizes
| Product Code | ID | OD | WP | BP | Weight | Length | |||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | bar | psi | bar | psi | kg/m | m | |
| SY-MCDH-006 | 3/4" | 19 | 30.4 | 10 | 150 | 40 | 600 | 0.67 | 60 |
| SY-MCDH-025 | 1" | 25 | 36.4 | 10 | 150 | 40 | 600 | 0.84 | 60 |
| SY-MCDH-032 | 1-1/4" | 32 | 44.8 | 10 | 150 | 40 | 600 | 1.2 | 60 |
| SY-MCDH-038 | 1-1/2" | 38 | 51.4 | 10 | 150 | 40 | 600 | 1.5 | 60 |
| SY-MCDH-051 | 2" | 51 | 64.4 | 10 | 150 | 40 | 600 | 1.93 | 60 |
| SY-MCDH-064 | 2-1/2" | 64 | 78.4 | 10 | 150 | 40 | 600 | 2.55 | 60 |
| SY-MCDH-076 | 3" | 76 | 90.8 | 10 | 150 | 40 | 600 | 3.08 | 60 |
| SY-MCDH-102 | 4" | 102 | 119.6 | 10 | 150 | 40 | 600 | 4.97 | 60 |
| SY-MCDH-152 | 6" | 152 | 171.6 | 10 | 150 | 40 | 600 | 8.17 | 30 |

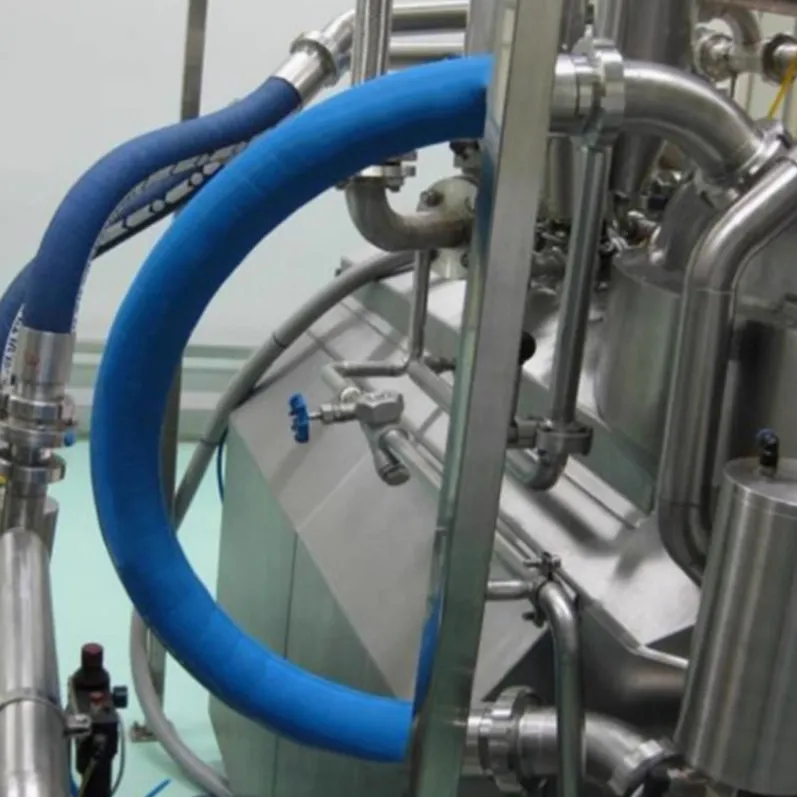

Flexible Chemical Hose Applications
This versatile industrial hose is optimized for both suction and delivery applications across various sectors:
- Chemical Processing: Transferring highly corrosive acids, alkalis, and aggressive solvents.
- Food & Pharmaceutical: Safe for food-grade substance handling due to the pure UHMWPE inner liner.
- Petrochemical Refineries: Delivering petroleum-based chemicals and complex compounds.
- Tank Truck & Railcar: Ideal for mobile loading and unloading operations where flexibility is crucial.
Frequently Asked Questions (FAQ)
Q1: What is the benefit of a UHMWPE liner compared to standard rubber?
A: UHMWPE (Ultra-High-Molecular-Weight Polyethylene) provides a virtually inert inner surface. It resists up to 98% of chemicals and corrosive liquids while being significantly lighter and more flexible than heavy rubber constructions.
Q1: What is the benefit of a UHMWPE liner compared to standard rubber?
A: UHMWPE (Ultra-High-Molecular-Weight Polyethylene) provides a virtually inert inner surface. It resists up to 98% of chemicals and corrosive liquids while being significantly lighter and more flexible than heavy rubber constructions.
Q2: Is the SY-MCDH chemical hose safe for food-grade applications?
A: Yes. The inner tube features a translucent, food-grade UHMW-PE liner, making it fully compliant and safe for food, beverage, and pharmaceutical fluid transfer.
Q3: Why does this hose include an antistatic copper wire?
A: Chemical transfer can generate static electricity, which poses a fire or explosion hazard. The integrated antistatic copper wire safely grounds the static buildup during fluid delivery.
Q4: Can I use this hose for full suction applications?
A: Yes. Although designed to save weight for delivery, the inclusion of the helix steel wire reinforcement ensures it handles both suction and delivery requirements perfectly.
Q5: What is your minimum order quantity (MOQ) and customization policy?
A: Our standard MOQ for the SY-MCDH series is 300 meters. As a leading supplier, we can provide custom lengths, specialized fittings, and specific branding based on bulk order requirements.
Customization & OEM Service
ShengYa supplies Chemical Delivery Hose to distributors, hose assemblers and OEM equipment builders worldwide. We support full customization on every order:
- Size & specification: non-standard bore, wall thickness, length or pressure rating built to your drawing or sample.
- Material & construction: compound, cover colour, reinforcement and helix options selected to match the conveyed medium.
- Branding: printed or embossed logo, part number and barcode, plus private-label packaging.
- Assembly: cut lengths, fitted couplings, clamps and pre-assembled hose sets ready to install.
- Documentation: material certificate, dimensional and pressure-test reports supplied on request.
Typical MOQ is 500 m (or 500 pcs for fittings) per size for customized production and lower for stocked items. Standard lead time is 15–25 days, and samples are available for evaluation before bulk order.
