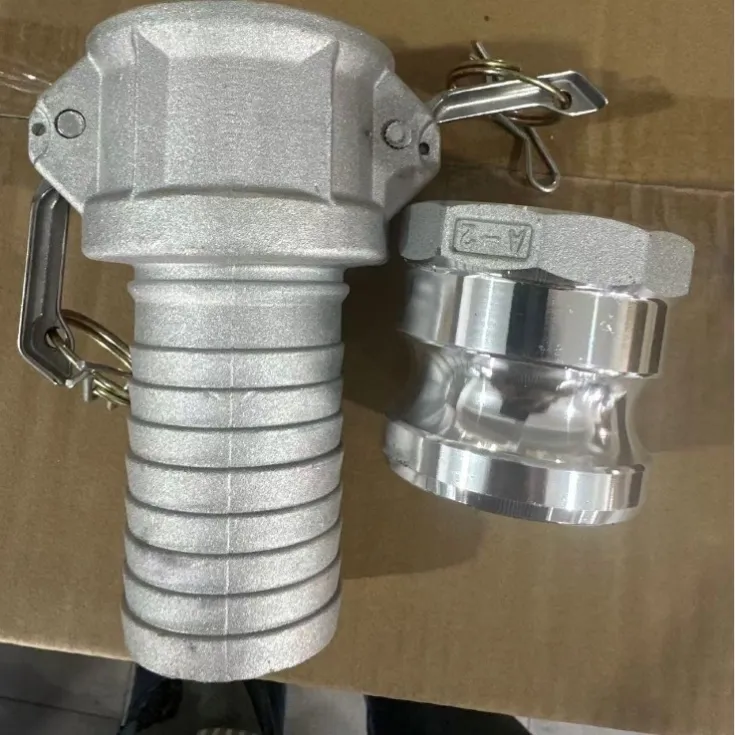

Aluminium Camlock Quick Coupling
The Aluminium Camlock Quick Coupling is a versatile and efficient solution designed for fast and secure connections in various industries.
Aluminium Camlock Quick Coupling Supplier from China
The Aluminium Camlock Quick Coupling is a cam-and-groove quick coupling that lets operators connect and disconnect hose and pipe in seconds, without tools, by simply opening two cam arms.
Manufactured from Cast or forged aluminium with stainless cam arms and pins, it is used across chemical transfer, petroleum, agriculture, food processing and water handling where fast, leak-tight line changes are needed.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Aluminium Camlock Quick Coupling (Cam & Groove Coupling) |
| Material | Cast or forged aluminium with stainless cam arms and pins |
| Size Range | 1/2" to 8" |
| Working Pressure | Up to 17 bar (250 PSI) |
| Working Temperature | -20°C to +150°C |
| Coupling Types | Type A, B, C, D, E, F plus dust caps and plugs |
| Thread | BSP / NPT |
| Gasket | NBR, EPDM, Viton or PTFE |
| Standard | MIL-C-27487 / EN 14420-7 (DIN 2828) dimensional interchange |
| MOQ | 100 pcs per size |
Key Features
- Tool-free connection — two cam arms lock the adapter into the coupler in seconds.
- Interchangeable with other cam-and-groove couplings built to MIL-C-27487 / EN 14420-7 dimensions.
- Full range of end configurations: male adapter, female coupler, hose shank, threaded and flange.
- Replaceable gasket in NBR, EPDM, Viton or PTFE to suit the conveyed medium.
- Dust caps and plugs keep the line clean during storage and transport.
- Available with safety clips or locking pins to prevent accidental opening under pressure.
Application Scenarios
- Chemical transfer: loading and unloading acids, solvents and fertilizers from tankers and IBCs.
- Petroleum & fuel: diesel, kerosene and light oil transfer with NBR or Viton gaskets.
- Agriculture: liquid fertilizer, pesticide and irrigation water transfer.
- Food & beverage: stainless versions with food-grade gaskets for milk, juice and edible oil.
- Water & wastewater: temporary bypass pumping, tank filling and dewatering lines.
Customization & OEM Service
ShengYa supplies aluminium camlock quick couplings to distributors, hose assemblers and OEM equipment builders worldwide. We support full customization:
- Size & specification: non-standard bore, band width or thread pitch built to your drawing.
- Material selection: carbon steel, stainless steel 304/316, brass, aluminium, PP or nylon to match the medium.
- Sealing & gasket: NBR, EPDM, Viton, PTFE or silicone gaskets for chemical, oil or food contact.
- Branding: laser-engraved logo, stamped part number, custom label and retail/wholesale packaging.
- Documentation: material certificate, dimensional report and pressure-test report on request.
Packaging & Delivery
Standard packing is polybag + inner box + export carton, or bulk-packed on request. Typical MOQ is 500 pcs per size for customized orders and 100 pcs for stocked sizes. Lead time is 7–15 days for stock and 20–30 days for customized production. Samples are available for evaluation before bulk order.
Frequently Asked Questions
What is the difference between Type A, B, C, D, E and F?
Type A is a male adapter with female thread; B is a female coupler with male thread; C is a female coupler with hose shank; D is a female coupler with female thread; E is a male adapter with hose shank; F is a male adapter with male thread.
How do I choose the right gasket material?
NBR suits oil and fuel; EPDM suits water, steam and many chemicals; Viton handles higher temperatures and aggressive solvents; PTFE gives the broadest chemical resistance. Tell us your medium and temperature and we will specify it.
Are your camlocks interchangeable with other brands?
Yes. Our camlocks are produced to MIL-C-27487 / EN 14420-7 dimensional standards, so they mate with other compliant cam-and-groove couplings of the same size.
Can I get camlocks with my own logo and packaging?
Yes. We offer stamped or cast logos, laser marking, custom barcode labels and private-label packaging for distributors.
