Air / Water Hose
Multi-purpose EPDM rubber air/water hose for workshops & construction. High ozone & abrasion resistance. 20 Working Pressure. 300m MOQ, 20m/50m/100m coils. Custom length & color.
Multi-Purpose Air / Water Hose
Optimize your industrial fluid and pneumatic transfer operations with our premium Multi-Purpose Air / Water Hose. Specially engineered with an advanced premium EPDM rubber compound, this heavy-duty utility hose delivers exceptional resistance against weathering, ozone degradation, and severe surface abrasion. It is recognized as the definitive, rugged industrial standard for conveying both compressed air and industrial water service environments across workshop facilities, mining sites, and construction fields.
Technical Specifications
| Product Code | Inner Diameter (ID) | Outer Diameter (OD) | Working Pressure (WP) | Burst Pressure (BP) | Weight | Standard Length | |||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | bar | psi | bar | psi | kg/m | m | |
| SY-MAH-006 | 1/4" | 6 | 14 | 20 | 300 | 60 | 900 | 0.71 | 100 |
| SY-MAH-008 | 5/16" | 8 | 16 | 20 | 300 | 60 | 900 | 0.2 | 100 |
| SY-MAH-010 | 3/8" | 10 | 18 | 20 | 300 | 60 | 900 | 0.24 | 100 |
| SY-MAH-013 | 1/2" | 13 | 22 | 20 | 300 | 60 | 900 | 0.33 | 100 |
| SY-MAH-016 | 5/8" | 16 | 26 | 20 | 300 | 60 | 900 | 0.45 | 100 |
| SY-MAH-019 | 3/4" | 19 | 29 | 20 | 300 | 60 | 900 | 0.51 | 100 |
| SY-MAH-025 | 1" | 25 | 37 | 20 | 300 | 60 | 900 | 0.7 | 100 |
| SY-MAH-032 | 1-1/4" | 32 | 45 | 20 | 300 | 60 | 900 | 1.04 | 60 |
| SY-MAH-038 | 1-1/2" | 38 | 51.8 | 20 | 300 | 60 | 900 | 1.38 | 60 |
| SY-MAH-045 | 1-3/4" | 45 | 58.8 | 20 | 300 | 60 | 900 | 1.59 | 60 |
| SY-MAH-051 | 2" | 51 | 64.8 | 20 | 300 | 60 | 900 | 1.78 | 60 |
| SY-MAH-064 | 2-1/2" | 64 | 78.6 | 20 | 300 | 60 | 900 | 2.25 | 60 |
| SY-MAH-076 | 3" | 76 | 90.6 | 20 | 300 | 60 | 900 | 2.62 | 60 |
| SY-MAH-089 | 3-1/2" | 89 | 106.4 | 20 | 300 | 60 | 900 | 3.65 | 60 |
| SY-MAH-102 | 4" | 102 | 119.4 | 20 | 300 | 60 | 900 | 4.14 | 60 |
*Note: While the standard continuous warehouse lengths are indicated in the technical data table, each profile configuration can be custom-cut to alternative options such as 20 meters, 50 meters, or 100 meters per coil to better accommodate your exact field application and marketplace stocking standards.
Ordering Specifications & Bulk Customization Options
- Minimum Order Quantity (MOQ): 300 meters per size to support competitive wholesale factory-direct pricing scales.
- Coil Length Options: Highly versatile roll options available in lengths of 20 meters, 50 meters, or 100 meters, with customizable tailored configurations available upon technical request.

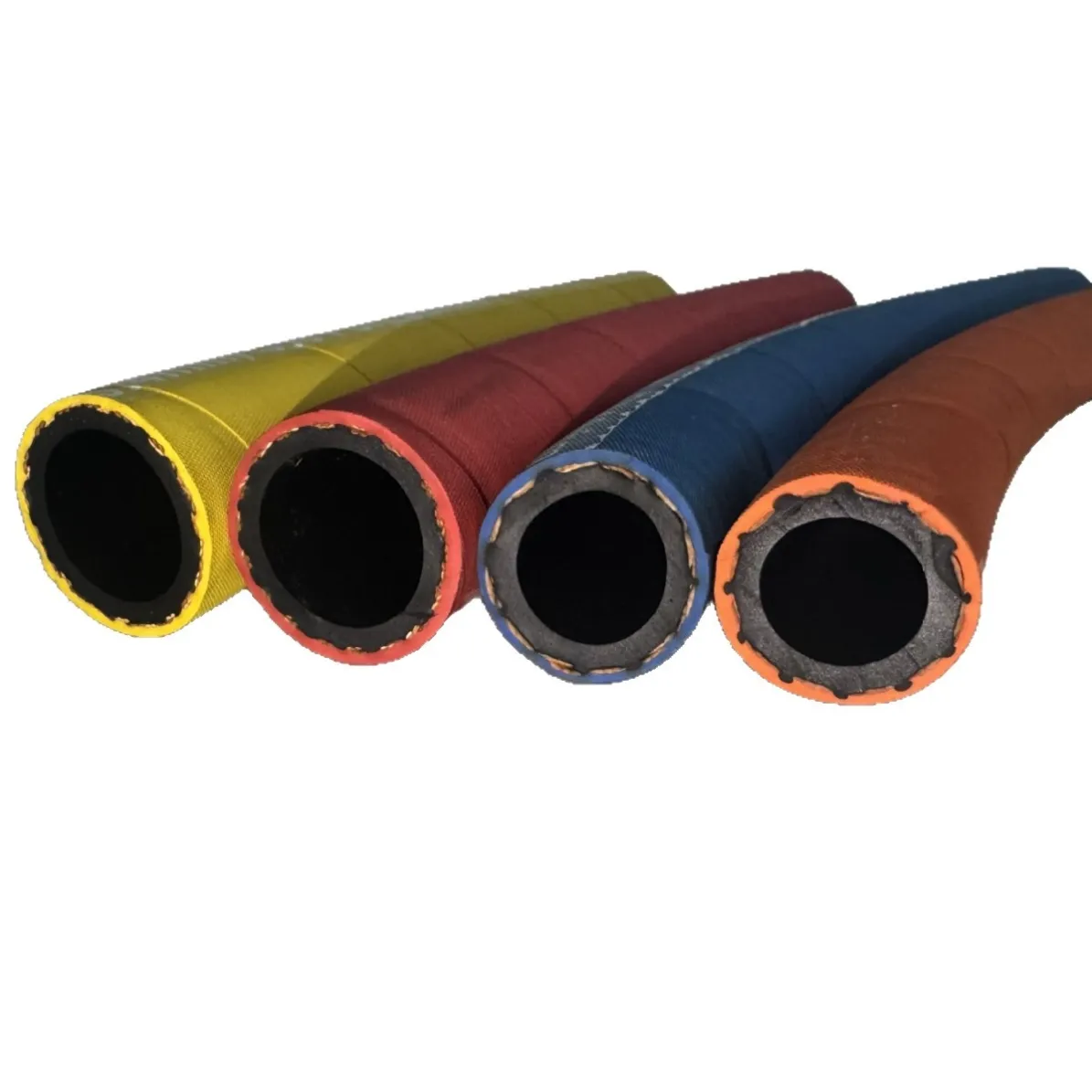

- Color Customization: Standard sleek industrial black finish, with customizable color jacket designs available to seamlessly correspond with your specific corporate branding parameters or local market safety certifications.

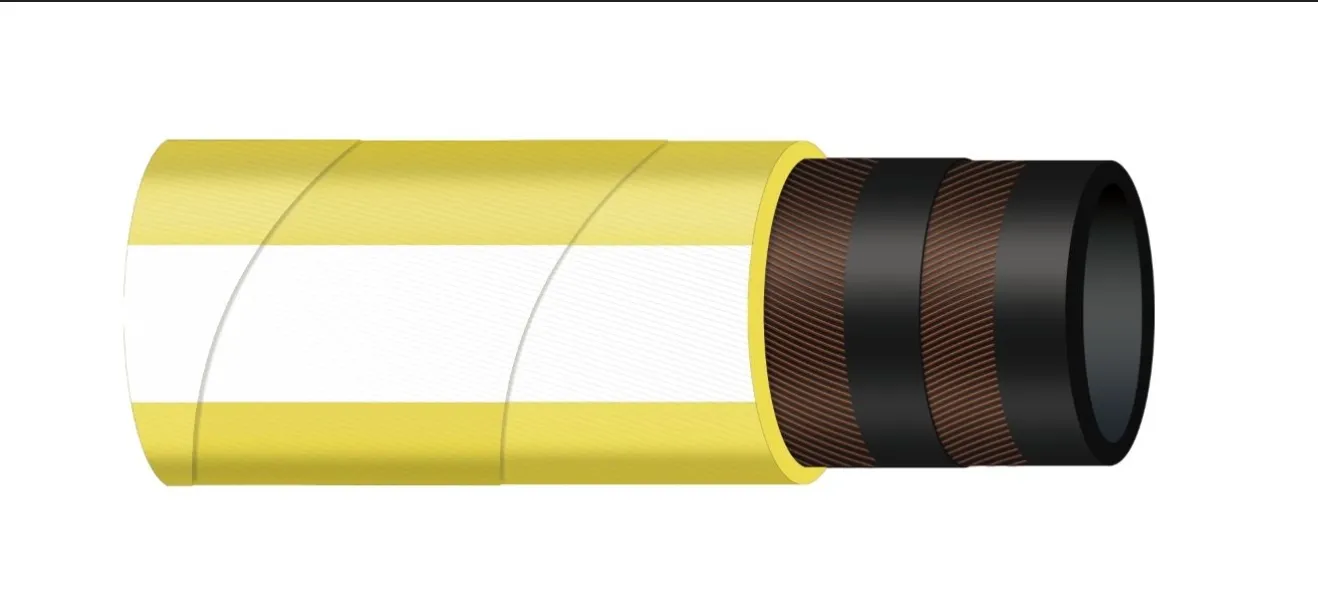

- Premium Reinforcement Core: Engineered with advanced high-tensile synthetic textile yarn braiding, ensuring maximum anti-kink memory retention and superb stability under continuous high working pressures.
Heavy-Duty Compressed Air & General Utility Water Service
Developed to perform flawlessly through demanding daily dragging across severe construction sites, this versatile multi-purpose utility hose integrates a weather-defying outer protective cover that successfully isolates it against severe UV damage and thermal ozone checking. The robust internal liner layer remains highly stable, ensuring an optimized fluid transfer velocity with zero clogging issues.
Industrial & General Utility Applications
- Pneumatic Tool Lines: Secure compressed air supply paths supporting heavy-duty pneumatic air wrenches, jackhammers, and workshop air lines.
- Construction Sites: Robust water transfer networks supporting concrete curing, structural washdowns, and layout dust suppression.
- Agricultural Irrigation: Versatile and reliable high-reach fluid transit routing for broad commercial orchards and landscaping.
- Shipbuilding & Heavy Fabrication: Premium high-tensile drag lines capable of withstanding rough contact against metallic edges.
Why Choose Our EPDM Multi-Purpose Hose?
As an established high-capacity industrial hose manufacturer, we supply elite B2B buyers with certified utility ducts built for extreme longevity. Our proprietary vulcanized compound delivers exceptional performance at a highly competitive B2B wholesale pricing structure. Reach out to our technical sales division today for volume price sheets and tailored private-label branding options.
Frequently Asked Questions (FAQs)
Q1: Can this hose handle hot water or chemical fluids?
A: Our multi-purpose utility hose is engineered primarily for compressed air and general water delivery. Thanks to its EPDM synthetic composition, it handles mild hot water washdowns effectively. For aggressive industrial chemicals or high-temperature steam lines, please contact our support team to verify the matching solution.
Q2: Can I order specific cut lengths like 20m or 50m coils?
A: Yes, absolutely. We offer flexible packaging configurations beyond the standard factory stock sizes. You can request each coil to be precision-cut into continuous lengths of 20 meters, 50 meters, or 100 meters per roll to better match your specific distribution and application goals.
Q3: What are the main benefits of an EPDM rubber composition?
A: EPDM synthetic rubber stands out for its exceptional environmental endurance. Unlike standard rubber alternatives, it does not crack or degrade under intense UV rays, severe heat, cold climates, or direct ozone exposure. This ensures an extended operational lifespan in heavy-duty open fields.
Q4: Why do you enforce a 300-meter MOQ for wholesale orders?
A: Setting a 300-meter minimum order threshold per size lets us maximize our heavy-duty extrusion efficiency. This production advantage lowers processing costs and allows us to provide the most competitive factory-direct pricing for international distributors.
